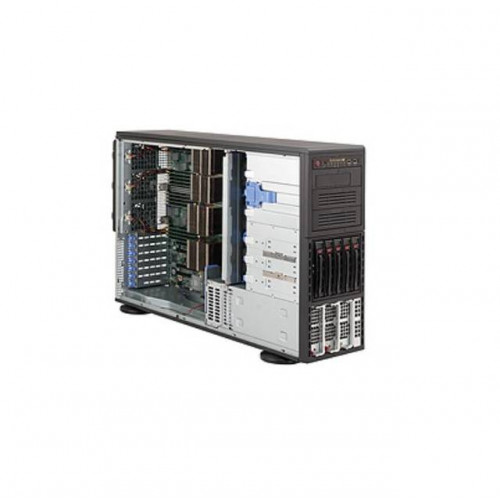

Supermicro SuperServer SYS-8046B-6RF Quad LGA1567 1400W 4U Rackmount/ Tower Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-8046B-6RF

• Motherboard: Super X8QB6-F

• Processor: Quad LGA1567
  • Supports up to Four Intel Xeon 64-bit Processors

  • Supports Intel Xeon 7500 Series Processors (Eight-Core, Codename Nehalem-EX)

  • Supports Intel Xeon E7-4800 Family Processors (Ten-Core, Codename Westmere-EX)
  • QPI up to 6.4 GT/s

• Chipset: North Bridge Intel 7500 (Boxboro-EX) & South Bridge Intel ICH10R

• Memory: 32x 240pin DDR3-1333/1066/978/800 DIMMs, ECC/REG, Max Capacity of 1024GB

• Slots: Auto-switch for- 2x PCI-E 2.0 x16 or 1x PCI-E 2.0 x16 + 2x PCI-E 2.0 x8 or 4x PCI-E 2.0 x8 Slots

• SATA: SATA2 Support RAID 0, 1, 5 (Windows), RAID 0, 1 (Linux)

• SAS: 8x SAS2 Ports, Support RAID 0, 1, 5, 6, 10

• Video: Matrox G200eW Graphics, w/ 16 MB DDR2 memory

• LAN: Intel 82576 Dual-Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)

• Drive Bays: 5x 3.5" SAS/ SATA Hot-swap Drive Bays, 3x 5.25" Peripheral Drive Bays

• Backplane: SAS/SATA HDD Backplane (SAS support requires optional SAS controller)

• Ports: 5x USB 2.0 Ports (2 rear, 3 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 3x RJ45 LAN Ports

• Form Factor: 4U Rackmount/Tower

• Power Supply: 1400W 80 PLUS Gold Certified Redundant High-efficiency Power Supply with PMBus

• System Cooling: 3x 80mm RPM Hot-Swappable Cooling Fans; 3x 80mm RPM Hot-Swappable Rear Exhaust Fans; 1x Air Shroud

• Color: Black

• Dimensions (WxDxH): 7.0 x 28.4 x 17.8 inch / 178.0 x 721.0 x 452.0 mm

• Weight: 65.5 lbs / 29.7 kg
