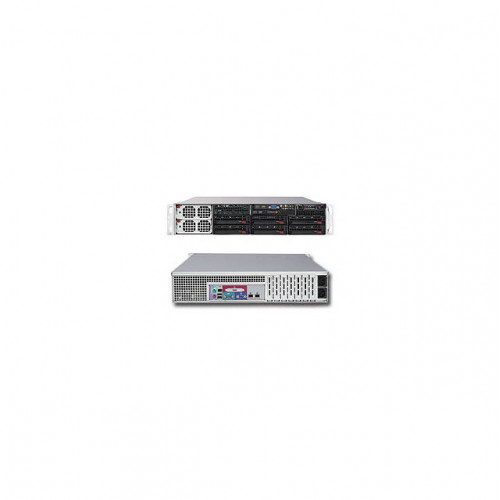

Supermicro SuperServer SYS-8026B-6RF Quad LGA1567 1400W 2U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-8026B-6RF
• Motherboard: Super X8QB6-F
• Processor: Quad LGA1567
  • Support up to four Intel Xeon 64-bit Processors
  • Support Intel Xeon 7500 Series (8-Core, Codename Nehalem-EX) Processors
  • Support New Generation Intel Xeon E7-4800 Family (10-Core, Codename Westmere-EX) Processors
  • QPI up to 6.4 GT/s
• Chipset: North Bridge Intel 7500 (Boxboro-EX) & South Bridge ICH10R

• Memory: 32x 240pin DDR3-1333/1066/800 DIMM Slots, Supports up to 1024GB ECC/REG Memory (at 1066/978/800MHz Speed)
• Slots: 2x PCI-Express 2.0 x16 Slots or 1x PCI-Express 2.0 x16 Slot + 2x PCI-Express 2.0 x8 Slots or 4x PCI-Express 2.0 x8 Slots (Auto-switch, Low-Profile)
• SATA: SATA2 Supports RAID 0, 1, 5, 10 (Windows) and RAID 0, 1, 10 (Linux)
• SAS: SAS2 Supports RAID 0, 1, 5, 6, 10, 50
• Video: Matrox G200eW Graphics w/ 16MB DDR2 Video Memory
• LAN: Intel 82576 Dual-Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Drive Bays: 6x 3.5" Hot-swap SAS/SATA Drives

• Backplane: SAS/SATA HDD Backplane (SAS support requires optional SAS controller)

• Ports: 5x USB 2.0 Ports (2 rear, 3 via headers), 2x Serial Ports (1 rear, 1 via header), 1x VGA Port, 3x RJ45 LAN Ports
• Form Factor: 2U Rackmount
• Power Supply: 1400W 80 PLUS Gold Certified Redundant High-efficiency Power Supply w/ PMBus
• System Cooling: 3x 80mm Heavy-duty Fans w/ Optimal Fan Speed Control, 1x Air Shroud
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power, Hard Drive Activity, 2x Network Activity, System Overheat, Power Fail
• Color: Black
• Dimensions (WxDxH): 17.2 x 27.9 x 3.5 inch / 437.0 x 709.0 x 89.0 mm
• Weight: 40.0 lbs / 18.1 kg
