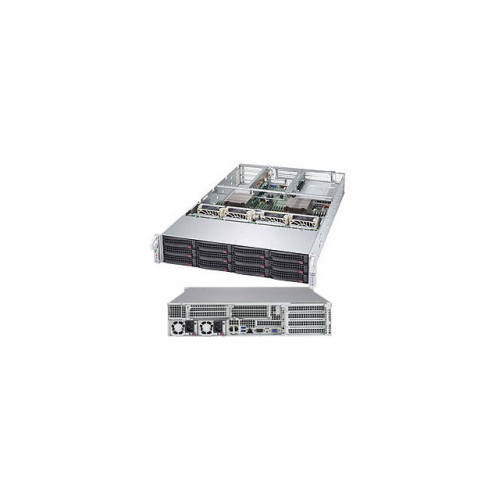

Supermicro SuperServer SYS-6028U-TR4T+ QT0048377 Dual LGA2011 1000W 2U Rackmount Server Barebone System (Black)

Supermicro SuperServer SYS-6028U-TR4T+ QT0048377 Dual LGA2011 1000W 2U Rackmount Server Barebone System (Black)
Brand: Supermicro
Part Number: SYS-628UR8
MSRP: $7,107.99
Availability: 1
Condition: New
Price: $5,922.50
Qty:     - OR -   Add to Wish List
Add to Compare

Specifications

  • Mfr Part Number: SYS-6028U-TR4T+ QT0048377
  • Motherboard: Super X10DRU-i+
  • Processors: Dual LGA2011
    • Support Intel Xeon E5-2600 v3 Processors
    • Support to 18 Cores
    • Cache up to 45MB
    • QPI up to 9.6 GT/s
    • Support uo to 160W TDP
  • Chipset: Intel C612 Express
  • Memory: 24x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 1.5 TB ECC/Load Reduced Memory or up to 768GB ECC/REG Memory
  • Slots: 1x PCI-Express 3.0 x16 Slot (Full-height, 10.5" length), 6x PCI-Express 3.0 x8 slots (4x Full-height, 10.5" length, 1x Low-profile, 1x Internal Low-profile)
  • SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
  • Video: ASPEED AST2400 BMC Graphics
  • LAN: 4x 10-Gigabit Ethernet Controllers via AOC-2UR6-i4XT
  • Drive Bays: 12x 3.5" Hot-swap Drive Bays
  • Backplane: 2U SAS/SATA Backplane
  • Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 1x VGA Port, 4x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
  • Form Factor: 2U Rackmount
  • Power Supply: 1000W 80 PLUS Titanium Certified High-Efficiency (96%+) Redundant Single Output Power Supplies
  • System Cooling: 4x 8cm Heavy Duty PWM Fans
  • Front Panel:
    • Buttons: Power On/Off, System Reset, UID
    • LEDs: Power Status, HDD Activity, 2x Network Activity, System Information (Overheat/UID)
  • Color: Black
  • Dimensions (WxDxH): 17.2 x 25.5 x 3.5 inch / 437.0 x 647.0 x 89.0 mm
  • Gross Weight: 36.0 lbs / 16.4 kg
  • RoHS Compliant
  • This Product Is Sold As Completely Assembled System Only. Price Based on Your System Configuration.
