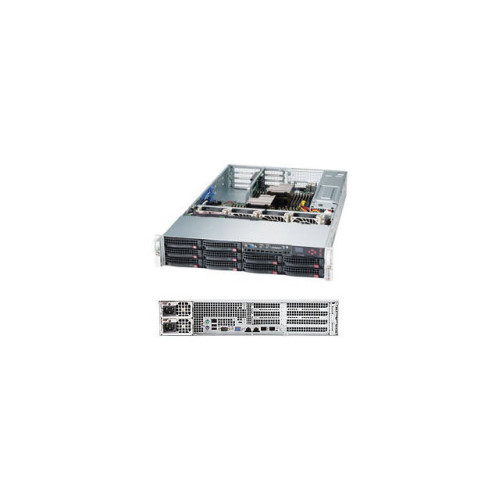

Supermicro SuperServer SYS-6027R-72RFTP+ Dual LGA2011 920W 2U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-6027R-72RFTP+
• Motherboard: Super X9DRW-7TPF+
• Processor: Dual LGA2011
  • Support Intel Xeon E5-2600 Processors
  • Cache up to 20MB
  • QPI up to 8 GT/s
  • Support up to 135W TDP
• Chipset: Intel C602J
• Memory: 24x 240pin DDR3-1600/1333/1066/800 DIMM Slots; Supports up to 768GB ECC/REG Memory or up to 128GB ECC/Unbuffered Memory
• Slots (via Riser Card):
  • Left: 1x PCI-Express 3.0 x16 Slot, 2x PCI-Express 3.0 x8 Slots (Full-height)
  • Right: 2x PCI-Express 3.0 x8 Slots (Low-profile)
• SATA: 2x SATA2 Ports, Support RAID 0, 1; SATA2 Supports RAID 0, 1, 5, 10

• SAS: 8x SAS2 Ports, Support RAID 0, 1, 5, 6, 10, 50, 60
• Video: Matrox G200eW Graphics
• LAN: Intel 82599 Dual Port 10-Gigabit SFP+ and Intel i350 Dual Port Gigabit Ethernet Controllers; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Drive Bays: 10x 3.5" Hot-swap SAS/SATA HDD Trays
• Backplane: 1x SAS2/SATA Backplane
• Ports: 5x USB 2.0 Ports (2 rear, 2 via header, 1 Type A), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x SFP+ LAN Ports, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 2U Rackmount
• Power Supply: 920W 80 PLUS Platinum Certified High-efficiency (94%+) AC-DC Redundant Power Supplies w/ PMBus and I2C
• System Cooling: 4x 8cm Heavy Duty PWM Fans
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power Status, Hard Drive Activity, 2x Network Activity, System Overheat, Power Fail
• Color: Black
• Dimensions (WxDxH): 17.20 x 27.75 x 3.50 inch / 437.0 x 705.0 x 89.0 mm
• Gross Weight: 52.0 lbs / 23.6 kg
• RoHS Compliant
