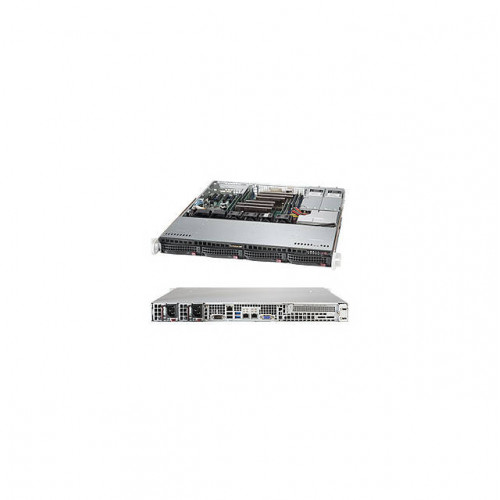

Supermicro SuperServer SYS-6018R-MTR Dual LGA2011 400W 1U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-6018R-MTR
• Motherboard: Super X10DRL-i
• Processors: Dual LGA2011
  • Support Intel Xeon E5-2600 v3 Family Processors
  • Support up to 18 Cores
  • Cache up to 45MB
  • QPI up to 9.6 GT/s
  • Support up to 135W TDP
• Chipset: Intel C612 Express
• Memory: 8x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory
• Slots: 1x PCI-Express 3.0 x8 Slot (Full-height, Half-length)
• SATA: 4x SATA3 Ports, Support RAID 0, 1, 5, 10, Two SATA Support SATA DOM
• Video: ASPEED AST2400 BMC Graphics
• LAN: Intel i210 Gigabit Ethernet Controller, 1x Realtek RTL8211E PHY (dedicated IPMI)
• Drive Bays: 4x 3.5" Hot-swap SATA HDD Trays
• Backplane: 1U SAS/SATA HDD Backplane
• Ports: 2x USB 3.0 Ports, 3x USB 2.0 Ports (1 Type A), 1x VGA Port, 2x Serial Ports (1rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 1U Rackmount
• Power Supply: 400W (1+1) Redundant SuperCompact Short-depth AC-DC Gold-level power supply with PMBus and I2C
• System Cooling: 5x 4cm 17.5K RPM PWM Fans
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power Status, HDD Activity, 2x Network Activity, Universal Information (UID)
• Color: Black
• Dimensions (WxDxH): 17.2 x 19.8 x 1.7 inch / 437.0 x 503.0 x 43.0 mm
• Gross Weight: 38.00 lbs / 17.24 kg
• RoHS Compliant
