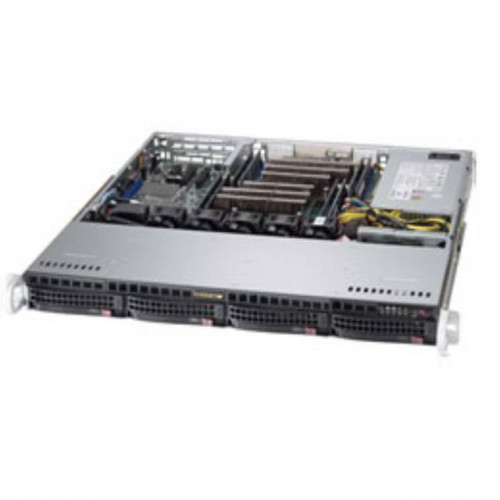

Supermicro SuperServer SYS-6017R-MTLF Dual LGA2011 440W/480W 1U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-6017R-MTLF
• Motherboard: Super X9DRL-EF
• Processor: Dual LGA2011
  • Support Intel Xeon E5-2600 Processors
  • Cache up to 20MB
  • QPI up to 8 GT/s
  • Support 60W to 115W TDP
• Chipset: Intel C602J
• Memory: 8x 240pin DDR3-1600/ 1333/ 1066/ 800 DIMM Slots, Supports up to 256GB ECC/REG Memory or up to 64GB ECC/Non-ECC Unbuffered Memory
• Slots: 1x PCI-Express 3.0 x8 Slot (Full-height, Half-length)
• SATA: 2x SATA3 Ports, Support RAID 0, 1; 4x SATA2 Ports, Support RAID 0, 1, 5, 10
• Video: Matrox G200eW Graphics
• LAN: Intel i210 Gigabit Ethernet Controller; 1x Realtek RTL8201F PHY (dedicated IPMI)
• Drive Bays: 4x 3.5" Hot-swap SATA HDD Trays
• Backplane: 1U SATA HDD Backplane
• Ports: 7x USB 2.0 Ports (4 rear, 2 via header, 1 Type A), 1x VGA Port, 2x Serial Ports, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 1U Rackmount
• Power Supply: 440W/480W 80 PLUS Platinum Certified AC Power Supply w/ PFC
• System Cooling: 5x 4cm 17,500 RPM PWM Fans
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power Status, HDD Activity, 2x Network Activity, Universal Information (UID)
• Color: Black
• Dimensions (WxDxH): 17.2 x 19.8 x 1.7 inch / 437.0 x 503.0 x 43.0 mm
• Gross Weight: 36.0 lbs / 16.33 kg
• RoHS Compliant
