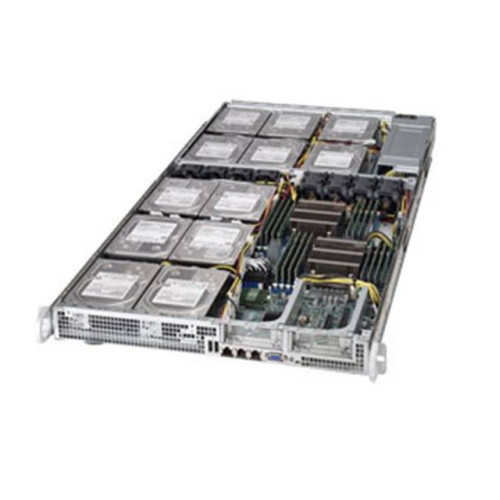

Supermicro SuperServer SYS-6017R-73HDP+ Dual LGA2011 650W 1U Rackmount Server Barebone System

Specifications

• Mfr Part Number: SYS-6017R-73HDP+
• Motherboard: Super X9DRFF-7G+
• Processor: Dual LGA2011
  • Support Intel Xeon E5-2600 Family Processors
  • Cache up to 20MB
  • QPI up to 8 GT/s
  • Support up to 130W TDP
• Chipset: Intel C602
• Memory: 16x 240pin DDR3-1600/ 1333/ 1066/ 800 DIMM Slots, Supports up to 512GB ECC/REG Memory or up to 192GB ECC/Unbuffered Memory
• Slots: 1x PCI-Express 2.0 x8 Slot (runs at x4, Half-height)
• SATA: 2x SATA3 Ports (via AHCI), 4x SATA2 Ports (via AHCI),  Support RAID 0, 1, 5, 10
• SAS: 8x SAS2 Ports, Support RAID 0, 1, 10
• Video: Matrox G200eW Graphics w/ 16MB DDR2 Video Card
• LAN: Intel i350 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8201F PHY (dedicated IPMI)
• Drive Bays: 12x 3.5" Fixed HDD Bays
• Backplane: SAS/SATA HDD Backplane
• Ports: 2x USB 2.0 Ports, 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 1U Rackmount
• Power Supply: 650W 80 PLUS Platinum Certified AC-DC High Efficiency Power Supply
• System Cooling: 4x 40x56mm PWM Cooling Fans, 4x 40x28mm PWM Cooling Fans
• Front Panel:
  • Buttons: Power On/Off
  • LEDs: Network Activity
• Dimensions (WxDxH): 17.20 x 35.75 x 1.70 inch / 437.0 x 909.0 x 43.0 mm
• Gross Weight: 38.0 lbs / 16.5 kg
• RoHS Compliant
