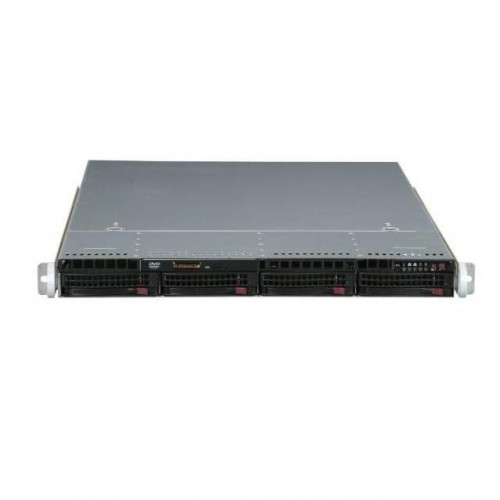

Supermicro SuperServer SYS-6016T-NTRF Dual LGA1366 650W 1U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-6016T-NTRF
• Motherboard: Super X8DTU-F
• Processor: Dual LGA1366
  • Support Intel 64-bit Xeon E5600/L5600 Series Processor (Westmere), Support 40W - 130W TDP
  • Support Intel 64-bit Xeon E5500/L5500 Series Processor (Nehalem-EP), Support 38W - 95W TDP
  • QPI up to 6.4 GT/s
• Chipset: North Bridge Intel 5520 (Tylersburg) & South Bridge ICH10R + IOH-36D
• Memory: 12x 240pin DDR3-1333/1066/800 DIMM Slots, Supports up to 192GB ECC/REG Memory or up to 48GB ECC/Non-ECC Unbuffered Memory
• Slots: 2x PCI-Express 2.0 x8 Slots
• SATA: 6x SATA2 Ports, Support RAID 0, 1, 5, 10 (Windows), Support RAID 0, 1, 10 (Linux)
• Video: Matrox G200eW Graphics
• LAN: Intel 82576 Dual-Port Gigabit Ethernet Controller
• Drive Bays: 4x 3.5" Hot-swap SATA Drive Bays
• Peripheral Drives: Slim 8x DVD, 24x CD, DVD-ROM Drive
• Backplane: SAS/SATA Backplane (SAS support requires optional SAS controller)
• Ports: 8x USB 2.0 Ports (2 rear, 4 via headers, 2 on-board), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x Serial Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 1U Rackmount
• Power Supply: 650W (1 + 1) Redundant AC Power Supply w/ PFC
• System Cooling: 4x Cooling Fans; 1x Air Shroud
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power, HDD Activity, 2x Network Activity, System Overheat
• Color: Black
• Dimensions (WxDxH): 17.2 x 25.6 x 1.7 inch / 437.0 x 650.0 x 43.0 mm
• Gross Weight: 46.0 lbs / 20.9 kg
• RoHS Compliant
