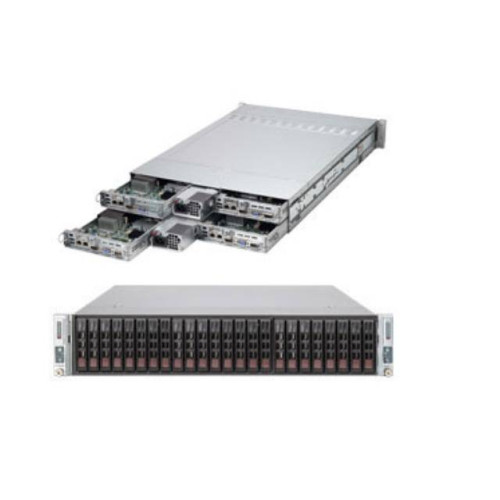

Supermicro SuperServer SYS-2027TR-H71RF+ Four Node Dual LGA2011 1620W 2U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-2027TR-H71RF+
• Motherboard: Super X9DRT-HF+
• Processor per Node: Dual LGA2011
  • Support Intel Xeon E5-2600 Processor
  • Cache up to 20MB
  • QPI up to 8 GT/s
  • Support up to 135W TDP
• Chipset per Node: Intel C602
• Memory per Node: 16x 240pin DDR3-1600/ 1333/ 1066/ 800 DIMM Slots, Supports up to 512GB ECC/REG Memory
• Slots per Node: 1x PCI-Express 3.0 x8 Slot (Micro Low Profile )
• SATA per Node: 6x SATA3 Ports & SATA2 Support RAID 0, 1, 5, 10
• SAS per Node: 6x SAS2 Ports, Support RAID 0, 1, 5, 6, 10, 50, 60
• Video per Node: Matrox G200eW Graphics
• LAN per Node: Intel i350 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Drive Bays per Node: 6x 2.5" Hot-swap SATA3/SAS2 HDD Trays
• Ports per Node: 5x USB 2.0 Ports (2 rear, 2 via header, 1 Type A), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 2U Rackmount
• Power Supply: 1620W 80 PLUS Platinum Certified High-efficiency Redundant Power Supply w/ PMBus
• System Cooling: 4x 80mm Heavy Duty PWM Fans w/ Optimal Fan Speed Control
• Front Panel:
  • Buttons: Power On/Off, System Reset, UID
  • LEDs: Power Status, HDD Activity, 2x Network Activity, Universal Information (UID)
• Color: Black
• Dimensions (WxDxH): 17.25 x 26.75 x 3.47 inch / 438.0 x 679.0 x 88.0 mm
• Gross Weight: 85.0 lbs / 38.6 kg
• RoHS Compliant
