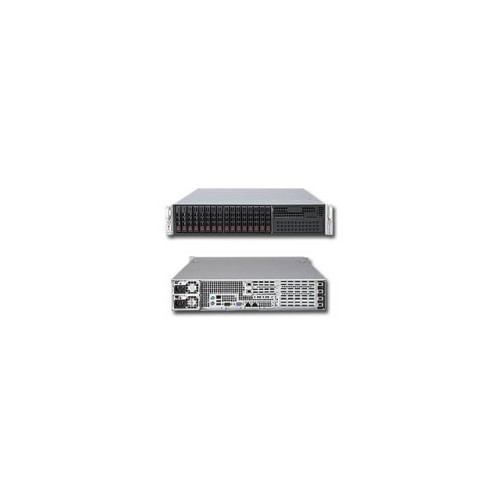

Supermicro SuperServer SYS-2026T-6RF+ Dual LGA1366 920W 2U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-2026T-6RF+
• Motherboard: Super X8DTU-6F+
• Processor: Dual LGA1366
  • Support 64-bit Intel Xeon X5600/E5600/L5600 Series (Westmere) processors, Support 40W - 130W TDP
  • Support 64-bit Intel Xeon X5500/E5500/L5500 Series (Nehalem-EP) processors, Support 38W - 95W TDP

  • QPI Upto 6.4 GT/s
• Chipset: North Bridge Intel 5520 (Tylersburg) & South Bridge ICH10R
• Memory: 18x 240pin DDR3-1333/1066/800 DIMMs, Supports up to 288GB ECC/REG Memory or up to 48GB ECC/Non ECC Unbuffered Memory
• Slots:
  • Left: 2x PCI-Express 2.0 x8 slots
  • Right: 1x PCI-Express 2.0 x8 slot (runs at x4, Low-Profile; 5.5" depth)
• SATA: 6x SATA2 Ports, Support RAID 0, 1, 5, 10
• SAS: SAS2 Supports RAID 0, 1, 5, 6, 10, 50, 60
• Video: Matrox G200eW Graphics

• LAN: Intel 82576 Dual-Port Gigabit Ethernet Controllers; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Drive Bays: 16x 2.5" SAS/ SATA Hot-swap Drive Trays
• Peripheral Drives: 8x Slim DVD, 24x CD, DVD-ROM drive

• Backplane: 2U SAS/SATA Backplane

• Ports: 5x USB 2.0 Ports(2 rear, 2 via headers, 1 on-board), 1x VGA Port, 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x Serial Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN port
• Form Factor: 2U Rackmount
• Power Supply: 920W 80 PLUS Platinum Certified high-efficiency (94%+) AC-DC Redundant power supply with PMBus and I2C
• System Cooling: 4x 80mm 6300 RPM fans, 1x Air Shroud
• Front Panel:
  • Buttons: Power On/Off, System Reset, UID
  • LEDs: Power, HDD Activity, 2x Network Activity, System Overheat / Fan Fail, Power fail
• Color: Black
• Dimensions (WxDxH): 17.20 x 27.75 x 3.50 inch / 437.0 x 705.0 x 89.0 mm
• Weight: 55.0 lbs / 24.9 kg
• RoHS Compliant
