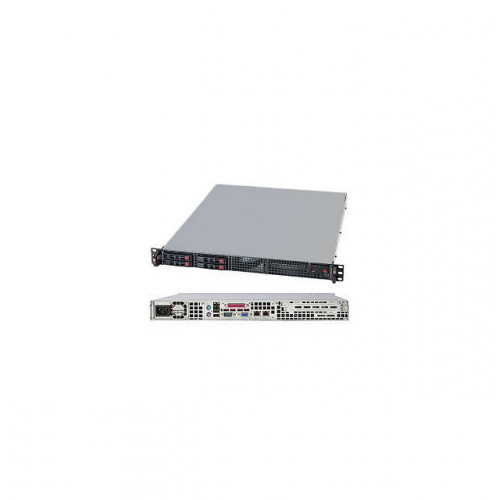

Supermicro SuperServer SYS-1017C-TF LGA1155 330W 1U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-1017C-TF
• Motherboard: Super X9SCL-F
• Processor: LGA1155
  • Supports Intel Xeon E3-1200 & v2 Series Processors
  • Supports 2nd and 3rd Generation Intel Core i3/ Pentium/ Celeron Processors
• Chipset: Intel C202 PCH
• Memory: 4x 240pin DDR3-1333/1066/800 DIMM Slots, Supports up to 32GB ECC/Unbuffered Memory
• Slots: 1x PCI-Express 2.0 x8 Slot (Full-height Full-length)
• SATA: 6x SATA2 Ports, Support RAID 0, 1, 5, 10
• Video: Nuvoton WPCM450RA0BX Graphics
• LAN: Dual Intel 82579LM and 82574L Gigabit Ethernet Controllers; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Drive Bays: 4x 2.5" Hot-swap SATA2 HDDs with RAID
• Backplane: SAS / SATA HDD Backplane
• Ports: 9x USB 2.0 Ports (2 rear, 6 via headers, 1 Type A), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 2x Serial Ports (1 rear, 1 via header), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 1U Rackmount
• Power Supply: 330W 80 Plus Gold Certified AC Power Supply w/ PFC
• System Cooling: 3x Cooling Fans
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power, HDD Activity, 2x Network Activity, System Overheat
• Color: Black
• Dimensions (WxDxH): 16.80 x 21.95 x 1.70 inch / 426.0 x 558.0 x 43.0 mm
• Gross Weight: 38.0 lbs / 16.5 kg
• RoHS Compliant
