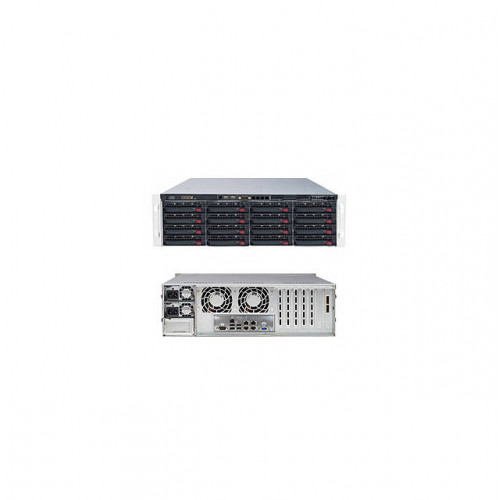

Supermicro SuperServer SSG-6037R-E1R16N Dual LGA2011 920W 3U Server Barebone System (Black)

Specifications

• Mfr Part Number: SSG-6037R-E1R16N
• Motherboard: Super X9DRi-LN4F+
• Processor: Dual LGA2011
  • Supports Intel Xeon E5-2600 Series Processors
  • Supports up to 130W TDP
  • Cache up to 20 MB
  • QPI up to 8 GT/s
• Chipset: Intel C602
• Memory: 24x 240pin DDR3-1600/1333/1066/800 DIMM Slots, Supports up to 768GB ECC/REG Memory or up to 192GB ECC/Non ECC Unbuffered Memory
• Slots: 3x PCI-Express 3.0 x16 Slots (Full-height, Full-length); 1x PCI-Express 3.0 x8 Slot (Full-height, Full-length)
• SATA: 2x SATA 3 ports, 8x SATA 2 ports, Supports RAID 0, 1, 5, 10
• SAS AOC: SAS2 (AOC); Supports RAID 0, 1, 5, 6, 10, 50, 60
• Video: G200 (Renesas SH7757 BMC) Graphics
• LAN: Intel i350 Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Drive Bays: 16x Hot-swap 3.5" SAS/SATA Drive Bays
• Backplane: SAS2/SATA3 backplane
• Ports: 9x USB 2.0 Ports (4 rear, 4 via header, 1 Type A), 2x JBOD Expansion Ports, 1x Serial Port, 1x VGA Port, 4x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN port
• Form Factor: 3U Rackmount
• Power Supply: 920W 80 Plus Platinum Certified High-efficiency (94%+) AC-DC Redundant Power Supplies w/ PMBus and I2C
• System Cooling: 3x 80mm Hot-swap 4-pin PWM Fans; 2x 80mm Rear-exhaust 4-pin PWM Fans

• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power Status, Hard Drive Activity, 2x Network Activity, System Overheat, Power Fail
• Color: Black
• Dimensions (WxDxH): 17.2 x 25.5 x 5.2 inch / 437.0 x 648.0 x 132.0 mm
• Weight: 48.0 lbs / 21.8 kg
• RoHS Compliant
