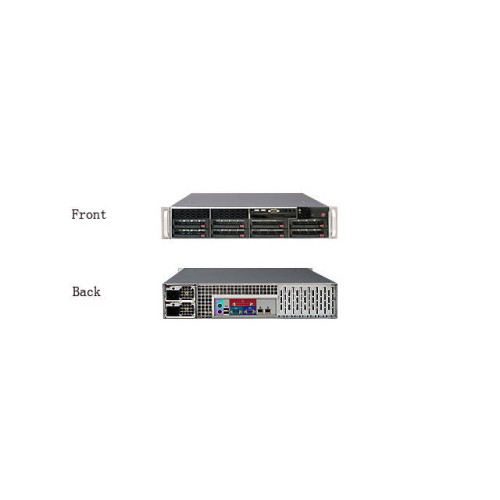

Supermicro SuperServer 6025W-NTR+B Dual LGA771 700W 2U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-6025W-NTR+B
• Motherboard: Super X7DWN+
• Processor: Dual LGA771
  • Support Intel 64-bit Xeon Quad-Core 5400/5300LV Sequence (Harpertown/Clovertown processor), up to 3.00 GHz
  • Support Intel 64-bit Xeon Dual-Core 5200/5100LV Sequence (Wolfdale/Woodcrest processor), up to 3.16GHz
  • FSB 1600/ 1333/ 1066 MHz
• Chipset: North Bridge Intel 5400 (Seaburg) & South Bridge ESB2
• Memory: 16x 240pin DDR2-800/667/533 FB-DIMMs, Dual Branch Memory Bus, ECC, Fully Buffered, Support up to 128GB ECC Memory

• Slots: 3x PCI-Express x8 Slots (Two Support PCI-Express 2.0); 1x PCI-Express x4 Slot; 2x 64-bit/133MHz PCI-X 3.3V Slots; 1x UIO Slot
• SATA: 6x SATA2 Ports, Support RAID 0, 1, 5, 10 (Windows only)
• IDE: 1x EIDE channel; supports up to two UDMA IDE devices; Supports UDMA Mode 5, PIO Mode 4, and ATA 100
• Video: AMD ES1000 Graphics, w/ 32MB Video Memory
• LAN: Intel 82575 Dual-Port Gigabit Ethernet Controller
• Drive Bays: 8x 3.5" SATA Hot-swap Drive Bays
• Peripheral Drives: 8x Slim DVD, 24x CD, DVD-ROM Drive
• Backplane: 1x 2U SAS/SATA Backplane

• Ports: 5x USB 2.0 Ports (2 rear, 3 via headers), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 2x Serial Ports (1 rear, 1 via header), 1x VGA Port, 2x RJ45 LAN Ports
• Form Factor: 2U Rackmount
• Power Supply: 700W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC
• System Cooling: 3x 80mm 6300 RPM fans; 1x Air Shroud
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power, Hard drive activity, 2x Network Activity, System Overheat/ fan fail, power fail
• Color: Black
• Dimensions (WxDxH): 17.2 x 25.5 x 3.5 inch / 437.0 x 648.0 x 89.0 mm
• Gross Weight: 55.0 lbs / 24.9 kg
• RoHS Compliant
