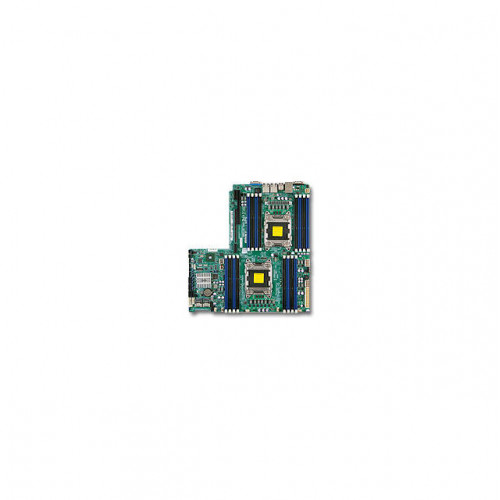

Supermicro X9DRW-3F-O Dual LGA2011/ Intel C606/ DDR3/ SATA3&SAS/ V&2GbE/ Proprietary WIO Server Motherboard

Specifications

• Mfr Part Number: X9DRW-3F-O
• CPU: Dual LGA2011
  • Supports Intel Xeon E5-2600 Series Processors
  • Cache up to 20MB
  • QPI up to 8 GT/s
  • Supports up to 130W TDP
• Chipset: Intel C606
• Memory: 16x 240pin DDR3-1600/1333/1066/800 DIMM Slots, Supports up to 512GB ECC/REG Memory or up to 128GB ECC/Non-ECC Un-buffered Memory
• Slots: 1x PCI-Express 3.0 x32 Slots (Left Side)
• SATA: 4x SATA2 Ports, 2x SATA3 Ports; Support RAID 0, 1, 5, 10
• SAS: 8x SAS2 Ports, Support RAID 0, 1, 10
• Video: Integrated G200 (Renesas SH7757 BMC) Graphics Controller
• LAN: Intel i350 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8211E PHY (dedicated IPMI)
• Ports: 6x USB 2.0 Ports (4 rear, 2 via header), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: Proprietary WIO, 12.0 x 13.0 inch / 30.5 x 33.0 cm
• RoHS Compliant
