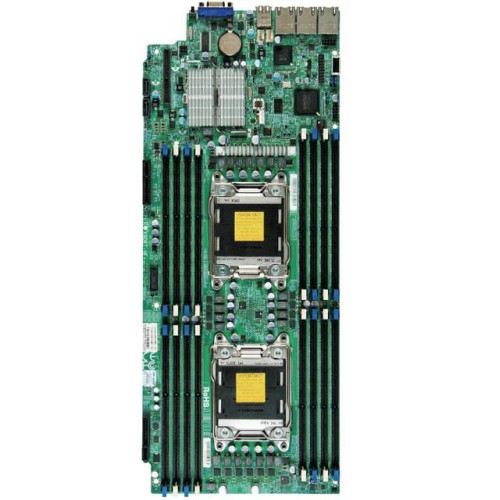

Supermicro X9DRT-HF+-B Dual LGA2011/ Intel C602/ DDR3/ SATA3/ V&2GbE/ Proprietary Server Motherboard

Specifications

• Mfr Part Number: X9DRT-HF+-B
• CPU: Dual LGA2011
  • Support Intel Xeon E5-2600 and E5-2600 v2 Family Processors
  • Support up to 130W TDP
  • Support up to 30MB Cache
  • QPI up to 8 GT/s
• Chipset: Intel C602
• Memory: 16x 240pin DDR3-1866/ 1600/ 1333/ 1066/ 800 DIMM Slots, Support up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory or up to 128GB ECC/Non-ECC Unbuffered Memory
• Slots: 1x PCI-Express 3.0 x8 Slot, 1x Micro PCI-Express 3.0 x8 Slot (Low Profile)
• SATA: 2x SATA3 Ports, 4x SATA2 Ports, Support RAID 0, 1, 5, 10
• Video: G200 (Nuvoton WPCM450 BMC with graphic controller)
• LAN: Intel i350 Dual-Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Ports: 5x USB 2.0 Ports (2 rear, 2 via header, 1 Type A), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: Proprietary Twin, 6.80 x 16.64 inch / 17.2 x 42.3 cm
• RoHS Compliant
