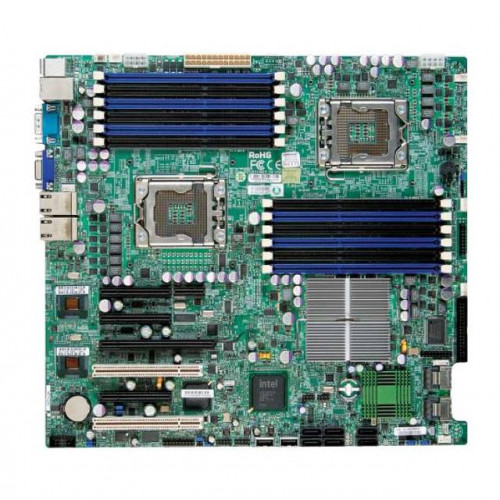

Supermicro X8DTI-LN4F-B Dual LGA1366 Xeon/ Intel 5520/ DDR3/ V&4GbE/ EATX Server Motherboard, Bulk

Specifications

• Mfr Part Number: X8DTI-LN4F-B
• CPU: Dual LGA1366 Sockets Supports Intel 64-bit Xeon 5600 series (Westmere) & Xeon 5500 series (Nehalem-EP) Processors, QPI Upto 6.4 GT/s
• Chipset: Intel 5520 (Tylersburg) & ICH10R + IOH-36D
• Memory: 12x 240pin DDR3-1333/1066/800 DIMMs, Supports 192GB ECC/Registered Memory or 48GB ECC/Non-ECC Unbuffered memory, Memory Mirroring supported
• Slots: 3x PCI-Express 2.0 x8 Slots; 1x PCI-Express x4 Slot; 2x 33MHz PCI Slots
• SATA: 6x SATA2 Ports, Support RAID 0, 1, 5, 10 (Windows), Support RAID 0, 1, 10 (Linux)
• Video: Matrox G200eW Graphics Controller
• LAN: 2x Intel 82576 Dual-Port Gigabit Ethernet Controllers; 1x Realtek RTL8201N PHY(dedicated IPMI)
• Ports: 8x USB 2.0 Ports (2 rear, 4 by headers and 2 on-board); 2x PS/2 Ports; 2x Serial Ports(1 rear, 1 by header optional); 1x VGA Port; 4x RJ45 LAN Ports(1x Dedicated IPMI LAN Port)
• Form Factor: Extended ATX, 12.0 x 13.0 inch / 30.5 x 33.0 cm
• Package: Bulk
• RoHS Compliant
