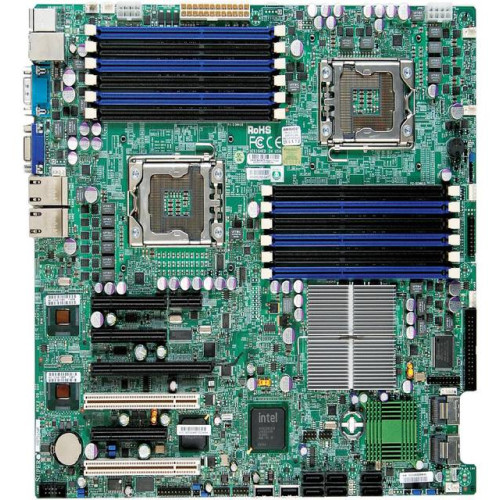

Supermicro X8DTI-F-O Dual LGA1366/ Intel 5520 & ICH10R + IOH-36D/ V&2GbE/ EATX Server Motherboard, Retail

Specifications

• Mfr Part Number: X8DTI-F-O
• CPU: Dual LGA1366, QPI up to 6.4 GT/s, Supports up to two Intel 64-bit Xeon processors of the same type below:
  • Intel Xeon 5600 Series Processors (Westmere)
  • Intel Xeon 5500 Series Processor (Nehalem-EP)
• Chipset: North Bridge Intel 5520 & South Bridge ICH10R + IOH-36D
• Memory: 12x 240pin-1333/1066/800 DIMM Slots, Supports up to 192GB ECC/REG Memory or up to 48GB ECC/Non ECC Unbuffered Memory
• Slots: 1x PCI-Express 2.0 x16 Slot; 2x PCI-Express 2.0 x8 Slots; 1x PCI-Express x4 Slot; 2x 33MHz PCI Slots
• SATA: 6x SATA2 Ports; Supports RAID 0, 1, 5, 10 (Windows), Supports RAID 0, 1, 10 (Linux)
• Video: Integrated Matrox G200eW Graphics Controller
• LAN: Intel Dual Port 82576 Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Ports: 8x USB Ports (2 rear, 4 via header, 2 on-board); 1x PS/2 Keyboard Port; 1x PS/2 Mouse Port; 1x VGA Port; 1x Serial Port; 2x RJ45 Ports; 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: Extended ATX, 12.0 x 13.0 inch / 30.5 x 33.0 cm
• RoHS Compliant
