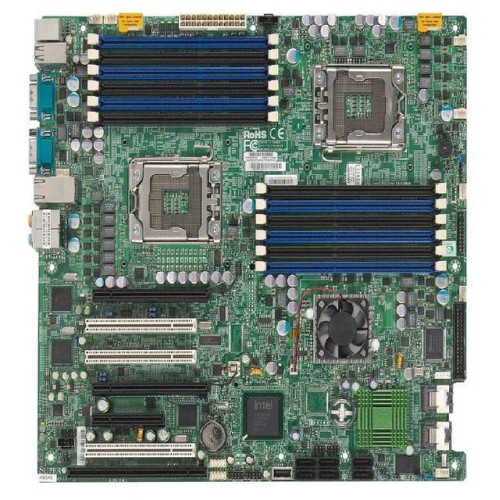

Supermicro X8DAI-B Dual LGA1366/ Intel 5520 & ICH10R + IOH-36D/ DDR3/ A&2GbE/ EATX Server Motherboard, Bulk

Specifications

• Mfr Part Number: X8DAI-B
• CPU: Dual LGA1366, QPI up to 6.4 GT/s, Supports up to two Intel 64-bit Xeon processors of the same type below:
  • Intel Xeon 5600 Series (Westmere) Processors
  • Intel Xeon 5500 Series (Nehalem-EP) Processors
• Chipset: North Bridge Intel 5520 & South Bridge ICH10R + IOH-36D
• Memory: 12x 240-pin DDR3-1333/1066/800 DIMM Slots, Supports up to 192GB ECC/REG Memory or up to 48GB ECC/Non ECC Unbuffered Memory
• Slots: 2x PCI-Express 2.0 x16 Slots; 1x PCI-Express x8 Slot (runs at x4); 3x 33MHz PCI Slots
• SATA: 6x SATA2 Ports; Supports RAID 0, 1, 5, 10 (Windows), Supports RAID 0, 1, 10 (Linux)
• Audio: Integrated Realtek ALC883 7.1 High Definition Audio CODEC
• LAN: Intel 82573L & 82573V Gigabit Ethernet Controller
• Ports: 10x USB 2.0 Ports (4 rear, 2 on-board, 4 via header); 1x PS/2 Keyboard Port; 1x PS/2 Mouse Port; 2x Serial Ports; 2x RJ45 LAN Ports; Audio I/O jacks
• Form Factor: Extended ATX, 12.0 x 13.0 inch / 30.5 x 33.0 cm
• RoHS Compliant
