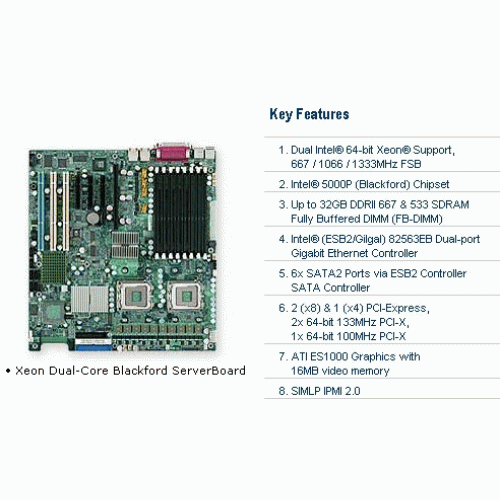

Supermicro X7DBE Dual LGA771 Xeon/ Intel 5000P/ PCIE/ 2GbE/ EATX Motherboard

Supermicro X7DBE Dual LGA771 Xeon/ Intel 5000P/ PCIE/ 2GbE/ EATX Motherboard
Brand: Supermicro
Part Number: MB-X7DBE
MSRP: $556.99
Availability: 1
Condition: New
Price: $464.10
Qty:     - OR -   Add to Wish List
Add to Compare
Specifications
  • Mfr Part Number: X7DBE-O
  • CPU: Dual 771-pin LGA Sockets Supports Intel 64-bit Dual-Core Xeon Processor 5000 sequence upto 3.73GHz; FSB 1333/1066/667 MHz
  • Chipset: Intel 5000P (Blackford) chipset & MCH + PXH + ESB2
  • Memory: 8x 240pin DIMMs, Dual Branch Memory Bus, ECC/FB-DIMM DDR2 667/533 memory; Max capacity 32GB
  • Slots: 2x PCI Express x8 slots; 1x PCI Express x4 slot (Run on x8); 1x SEPC (Supermicro PCI-e Power Connector) slot for 2U active riser cards with a power extension; 2x 64-bit 133MHz PCI-X (3.3V) slots; 1x 64-bit 100MHz PCI-X (3.3V) slot
  • IDE/SATA: 1x ATA-100 channel; 6x SATA2 ports support RAID 0, 1, 5, 10
  • Video: ATI ES1000 controller with 16 MB of video memory
  • LAN: Intel (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller
  • Ports: 1x floppy Port; 5x USB 2.0 ports (2 rear, 3 by headers); 2x PS/2 ports; 2x RJ45 ports; 1x VGA Port; 1x Fast UART 16550 serial port + 1x header; 1x ECP/EEP parallel port
  • Form Factor: Extended ATX, 12 x 13.05 inch / 30.5 x 33.2 cm
  • Package: Retail
  • To ensure system stability, a 500W (minimum) ATX power supply are requested
  • RoHS Compliant
