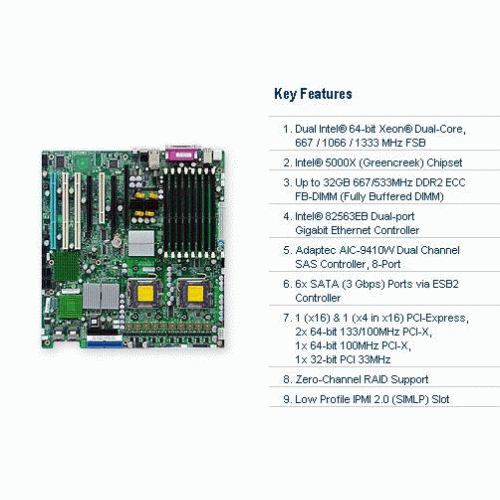

Supermicro X7DA3-O Dual LGA 771 Xeon/ 5000X/ DDR2/ PCI-E/ 2GbE Server Motherboard, Retail

• Mfr Part Number: X7DA3-O
• CPU: Dual 771-pin LGA Sockets Supports Intel 64-bit Dual-Core Xeon Processor 5100/5000 sequence (Woodcrest/Dempsey processor) w/ 4MB L2 cache, upto 3.73GHz; FSB 1333/1066/667 MHz
• Chipset: Intel 5000X (GreenCreek) & ESB2 + MCH + PXH-V
• Memory: 8x 240pin DDR2-667/533 FB-DIMMs, Dual branch memory bus, ECC, Max capacity 32GB
• Slots: 1x PCI Express x16 slot; 1x PCI Express x4 (run on x16) slot; 2x 64-bit 133/100MHz PCI-X (3.3V) slots; 1x 64-bit 100MHz PCI-X (3.3V) slot; 1x 32-bit 33MHz PCI (5V) slot
• IDE/SATA: 1x ATA-100 channel; 6x SATA2 ports support RAID 0, 1, 5, 10
• SAS: 8x SAS ports support RAID 0, 1, 10 (Adaptec AIC-9410W SAS Dual-Channel Controller)
• LAN: Intel 82563EB Dual-Port Gigabit Ethernet Controller
• Ports: 6x USB 2.0 ports (4 rear, 2 by header); 2x PS/2 ports; 2x Serial ports (1 rear, 1 by header); 1x Parallel port; 2x RJ45 LAN ports
• Power Connector: 24pin Main Power; 4pin (+12V), 8pin (+12V)
• Form Factor: Proprietary, 12.07 x 13.05 inch / 30.7 x 33.2 cm
• Package: Retail
• To ensure system stability, a 500W (minimum) ATX power supply is required
