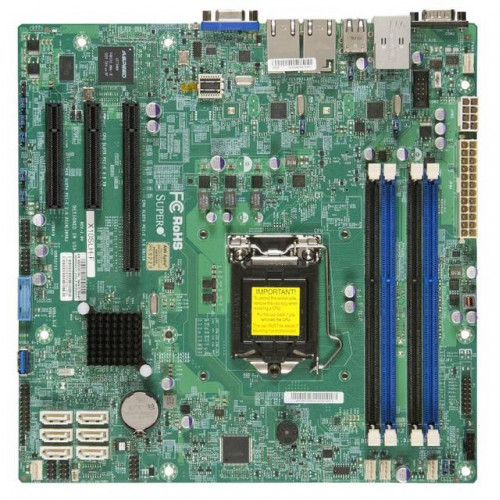

Supermicro X10SLH-F-B LGA1150/ Intel C226 PCH/ DDR3/ SATA3&USB3.0/ V&2GbE/ MicroATX Server Motherboard

Specifications

• Mfr Part Number: X10SLH-F-B
• CPU: LGA1150
  • Supports Intel Xeon E3-1200 v3 Processor
  • Supports 4th Generation Core i3/ Pentium/ Celeron Processors

• Chipset: Intel C226 Express PCH
• Memory: 4x 240pin DDR3-1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 32GB
• Slots: 1x PCI-Express 3.0 x16 Slot (runs at x8), 1x PCI-Express 3.0 x8 Slot, 1x PCI-Express 2.0 x8 Slot (runs at x4)
• SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
• Video: BMC Integrated Aspeed AST2400 Graphics
• LAN: 2x Intel i210AT Gigabit Ethernet Controllers; 1x Realtek RTL8211E PHY (Dedicated IPMI)
• Ports: 4x USB 3.0 Ports (2 rear, 1 Type A, 1 via header), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: MicroATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm
• RoHS Compliant
