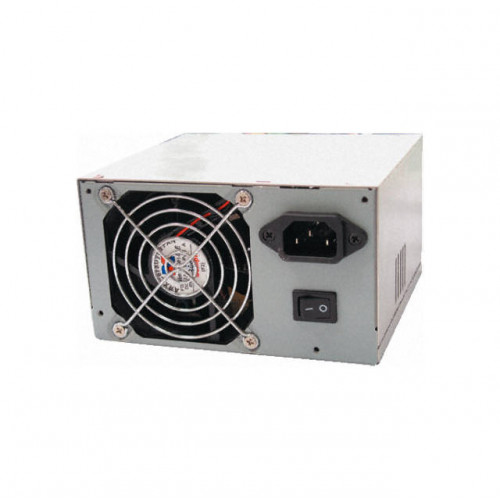

Seasonic SS-600ES 600W 80 Plus Bronze ATX12V V2.31 Power Supply

Specifications

• Mfr Part Number: SS-600ES BRONZE

• Features:
  • Specification compliance: ATX12V V2.31
  • Support the latest Intel & AMD Socket
  • PCI-Express & SATA ready
  • Double forward converter circuit
  • High efficiency and reliability
  • Low ripple & noise
  • Super low noise fan control
  • Short circuit protection on all outputs
  • Over voltage protection & Over power protection
  • 100% hi-pot test
  • 100% burn in, high temperature cycled on/off
• Total Power: 600 W
• Input Frequency Range: 47 ~ 63 Hz
• Inrush Current, Cold Start: 100A max
• Efficiency: >= 82%
• Line Regulation: +/-1% typical
• Load Regulation: +/-5% typical
• Cross Regulation: +/-5% typical
• Ripple / Noise: 1%
• Power Factor Correction: Active PFC, 99% typical
• Safety: CUL, TUV, CB, CCC
• EMI/RFI: CE, FCC, C-tick
• MTBF: >100k hrs
• Output: +3.3V @ 24A, +5V @ 24A, +12 @ 46A, -12V @ 0.8A, +5Vsb @ 2.5A
• Connectors: 1x 24/20pin Main Power, 1x 4pin Power Connector, SATA connector, Floppy Connector, HDD Connector
• Dimensions (WxLxH): 5.5 x 5.9 x 3.4 inch / 140.0 x 150.0 x 86.0 mm
• RoHS & WEEE compliant
• OEM Seasonic Power Supply doesn't come with Power Cord. Need to bundle with item # POWERCORDS (6 ft Power cord)
