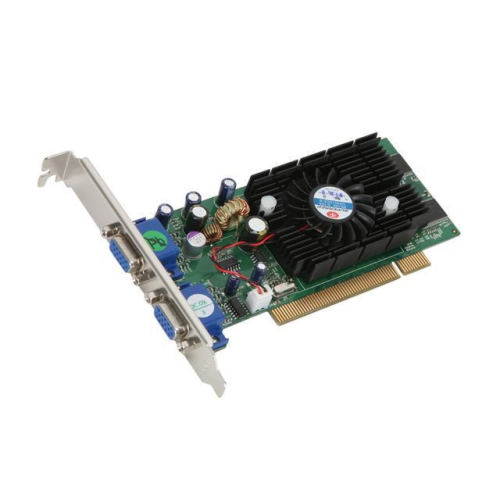

Jaton GeForce FX5200 128MB Dual Head PCI Video Card JAT-520PDH

Model: JAT-520PDH
Manufacturer: Jaton Corporation
Chipset: NVIDIA GeForce FX 5200

Product Description

The Jaton JAT-520PDH GeForce FX5200 is a PCI-based graphics accelerator designed for systems without AGP or PCIe slots. Built on the NVIDIA GeForce FX 5200 GPU architecture, it provides hardware-accelerated 2D and 3D graphics along with dual-monitor (dual head) support through two VGA outputs.

This card is suited for legacy desktop systems, industrial PCs, and workstations requiring extended desktop functionality. It supports Microsoft DirectX and OpenGL APIs, enabling multimedia playback, office productivity, and entry-level 3D rendering. The card also includes hardware MPEG video decoding and supports multiple operating systems including older Windows versions and Linux.

Technical Specifications

Graphics Processor

• GPU: NVIDIA GeForce FX 5200

• Architecture: CineFX graphics architecture

• Pixel Pipelines: 4

• Manufacturing Process: ~0.15 micron

• Graphics API Support:

  • Microsoft DirectX 9.0

  • OpenGL 1.4

Memory

• Installed Memory: 128 MB

• Memory Type: DDR SDRAM

• Memory Interface: 64-bit or 128-bit (varies by implementation)

• Effective Memory Clock: ~400 MHz (typical FX5200 configuration)

Bus Interface

• Bus Type: PCI (32-bit)

• Designed for legacy motherboards without AGP or PCIe slots.

Display Support

• Dual-Head Output: Yes

• Connectors:

  • 2 × VGA (RGB) analog outputs

• Maximum Monitors: 2 simultaneous displays

Resolution & Video

• Maximum Resolution: up to ~2048 × 1536

• RAMDAC: 350 MHz

• Video Processing:

  • Hardware MPEG-1 / MPEG-2 decoding

  • Video scaling and overlay support

Software / OS Support

• Windows 98 / 95

• Windows NT / 2000

• Windows ME

• Windows XP

• Linux compatible

Physical / Hardware Features

• Standard PCI add-in card form factor

• Low power consumption compared with high-end GPUs

• Optional bracket configurations for compact systems

• Supports NVIDIA nView multi-display technology

Key Features

• Dual-monitor capability (two VGA outputs)

• PCI interface for legacy PCs

• NVIDIA CineFX engine for 3D graphics acceleration

• Hardware video decoding for DVD playback

• DirectX 9 and OpenGL support for compatibility with older 3D applications

• Multi-display management through NVIDIA drivers

​

Typical Use Cases

• Legacy workstation upgrades

• Industrial / embedded PCs

• Multi-monitor office setups on older systems

• Replacement GPU for PCI-only motherboards
