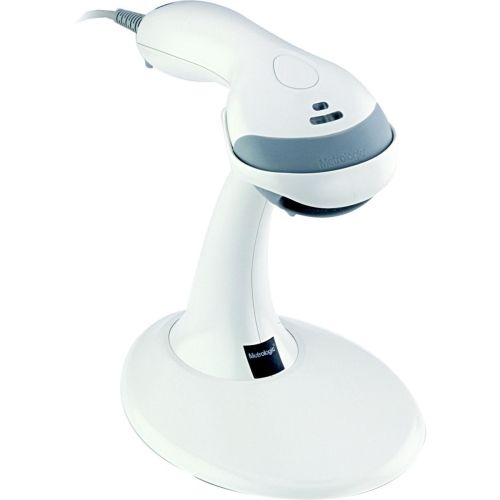

Honeywell VoyagerCG MS9540 Bar Code Reader - Wired - RoHS, TAA Compliance MK9540-72A38

Honeywell VoyagerCG MS9540 Bar Code Reader - Wired - RoHS, TAA Compliance

The Metrologic''s VoyagerCG MS9540 Bar Code Reader is a hand-held, single line reader that has united form with function in becoming the industry benchmark for value and performance. This sleek retail scanner features patented automatic infrared activation and decodes all standard 1D bar codes, including RSS codes. VoyagerCG MS9540 also includes Metrologic''s patented CodeGate Trigger technology with which easily completes data transmission by pushing a single button. Standard features include EAS antenna integration for tag deactivation, power save mode, data editing, OPOS/JPOS compatibility for easy installation and user-replaceable cables.

Technical Specifications:
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported: 1D, RSS-14, RSS Limited, RSS expanded
Light Source: Laser
Maximum Scan Resolution: 5 mil
Scan Pattern: Single Line
Host Interface: USB
Input Voltage: 5 V DC
Form Factor: Handheld
Product Color: Gray
Height: 7.8"
Width: 1.8"
Depth: 1.6"
Weight (Approximate): 5.26 oz
Package Contents:

VoyagerCG MS9540 Handheld Bar Code Reader, MetroSelect Single-Line Configuration Guide, MS9500 Voyager Series Single-Line Hand Held Laser Scanner User's Guide

Certifications & Standards: RoHS Compliant

LED Class:

Class 1; IEC60825-1:1993/A1:1997+A2:2001, Class 1; EN60825-1:1994/A11:1996+A2:2001

EMC:

FCC Class B
Environmentally Friendly: Yes
Environmental Certification: RoHS
