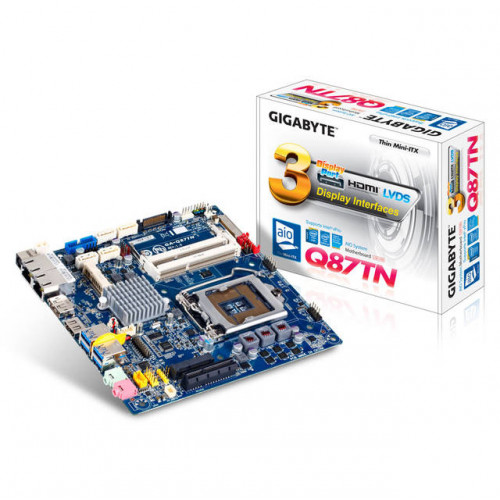

GIGABYTE GA-Q87TN LGA1150/ Intel Q87/ DDR3/ SATA3&USB3.0/ A&2GbE/ Mini-ITX Motherboard

Specifications

• Mfr Part Number: GA-Q87TN
• CPU: LGA1150
  • Supports Intel Core i7/ i5/ i3, Pentium, Celeron Processors
  • Supports up to 65W TDP
• Chipset: Intel Q87 Express
• Memory: 2x DDR3-1600/1333 SODIMM Slots, Dual Channel, Max Capacity of 16GB
• Slots: 1x PCI-Express 3.0 x4 Slot (Supports 25W only), 1x Mini PCI-Express x1 Slot
• SATA: 4x SATA3 Ports, 1x mSATA Port
• Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
• LAN: 1x Realtek and 1x Intel Gigabit Ethernet Controllers
• Ports: 6x USB Ports (4 rear, 2 via headers), 5x USB 2.0 Ports (via headers), 1x HDMI Port, 1x DispalyPort, 2x RJ45 LAN Ports, Audio I/O Jacks
• Power Connector: 1x 2pin Power Connector
• Form Factor: Mini-ITX, 17.0 x 17.0 cm
