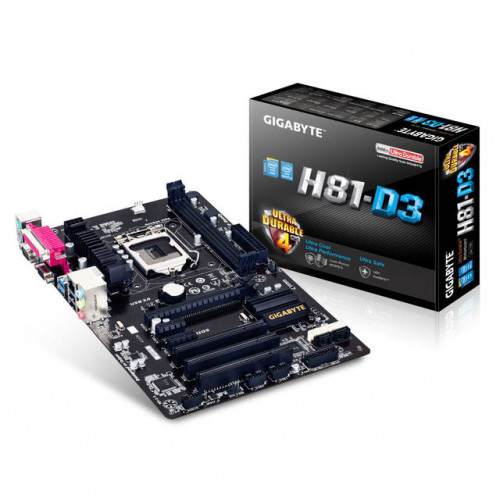

GIGABYTE GA-H81-D3 LGA1150/ Intel H81/ DDR3/ SATA3&USB3.0/ A&GbE/ ATX Motherboard

Specifications

• Mfr Part Number: GA-H81-D3
• CPU: LGA1150
  • Supports 4th Generation Intel Core i7/ i5/ i3, Pentium, Celeron Processors
• Chipset: Intel H81 Express
• Memory: 2x DDR3-1600/1333 DIMM Slots, Dual Channel, Non-ECC, Max Capacity of 16GB
• Slots: 1x PCI-Express 2.0 x16 Slot, 2x PCI-Express 2.0 x1 Slots, 3x PCI Slots
• SATA: 2x SATA3 Ports, 2x SATA2 Ports
• Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
• LAN: Realtek Gigabit Ethernet Controller
• Ports: 2x USB 3.0/2.0 Ports, 6x USB 2.0/1.1 Ports (2 rear, 4 via headers), 1x PS/2 Mouse Port, 1x PS/2 Keyboard Port, 1x VGA Port, 1x Serial Port, 1x Parallel Port, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
• Form Factor: ATX, 30.5 x 19.0 cm
