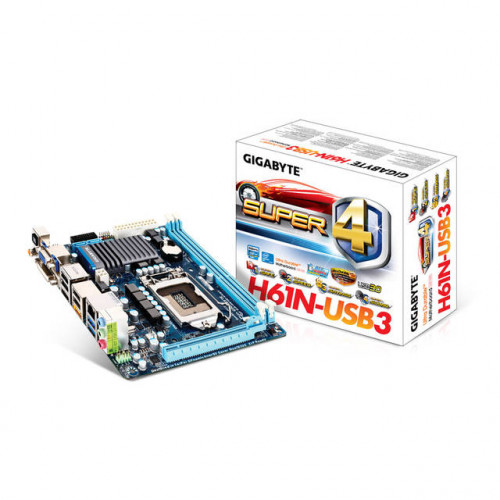

GIGABYTE GA-H61N-USB3 Socket 1155/ Intel H61/ DDR3/ USB3.0/ A&GbE/ Mini-ITX Motherboard

• Mfr Part Number: GA-H61N-USB3
• CPU: Socket 1155 Support Intel Core i7/Core i5 /Core i3/ Pentium/ Celeron series Processors
• Chipset: Intel H61 Express Chipset
• Memory: 2x DDR3-1333/1066/800 DIMMs, Dual Channel, non-ECC, Max Capacity up to 16GB
• Slots: 1x PCI-Express 2.0 x16 Slot
• SATA: 2x SATA2 Ports; 1x eSATA2 Port
• Audio: Realtek ALC889 7.1-channel High Definition Audio CODEC, Support for S/PDIF Out
• LAN: Realtek RTL8111E 10/100/1000 Mbps Gigabit Ethernet Controller
• Ports: 8x USB 2.0 Ports (4 rear, 4 by headers); 2x USB 3.0 Ports; 1x eSATA2 Port; 1x VGA Port; 1x DVI Port; 1x HDMI port; 1x Optical S/PDIF Out; 1x Coaxial S/PDIF Out; 1x RJ45 LAN Port; Audio I/O Jacks
• Power Connector: 1x 24pin Main Power, 1x 4pin CPU Power
• Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.0 x 17.0 cm
• Package: Retail
