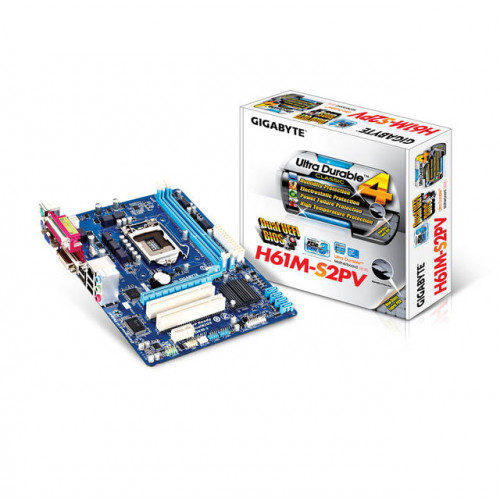

GIGABYTE GA-H61M-S2PV Socket 1155/ Intel H61/ DDR3/ A&GbE/ MATX Motherboard

Specifications

• Mfr Part Number: GA-H61M-S2PV
• CPU: LGA 1155 Support Intel Core i7/Core i5 /Core i3/ Pentium/ Celeron series Processors
• Chipset: Intel H61 Express Chipset
• Memory: 2x 240pin DDR3-1333/1066/800 DIMMs, Dual Channel, non-ECC, Max Capacity up to 16GB
• Slots: 1x PCI-Express 2.0 x16 Slot; 1x PCI-Express 2.0 x1 Slots; 2x PCI slots
• SATA: 4x SATA2 Ports
• Audio: Realtek ALC887 7.1-channel High Definition Audio CODEC
• LAN: Realtek RTL8111E 10/100/1000 Mbps Gigabit Ethernet Controller
• Ports: 8x USB 2.0 Ports (4 rear, 4 by headers); 2x PS/2 Ports; 1x VGA port; 1x DVI Port; 1x parallel port; 1x RJ-45 LAN Port; Audio I/O Jacks
• Power Connector: 1x 24pin Main Power, 1x 4pin CPU Power
• Form Factor: MATX , 24.4 x 20.0 cm
