Home » Brand » Cisco » Cisco Nexus 3064 Switch - Manageable - 52 x Expansion Slots - 48, 4 x Expansion Slot, Expansion Slot - 48 x SFP+ Slots - 3 Layer Supported - Redundant Power Supply - 1U High - Rack-mountable - 1 Year N3K-C3064PQ-10GX

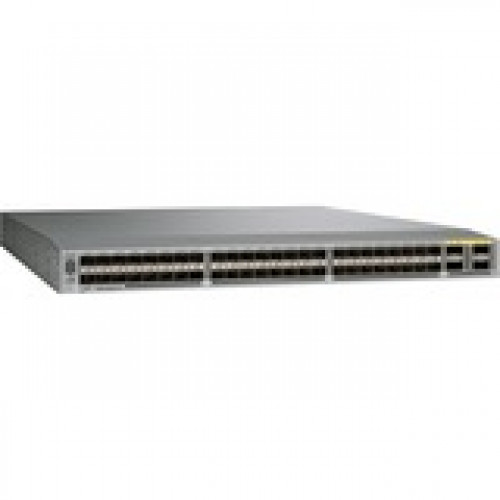

Cisco Nexus 3064 Switch - Manageable - 52 x Expansion Slots - 48, 4 x Expansion Slot, Expansion Slot - 48 x SFP+ Slots - 3 Layer Supported - Redundant Power Supply - 1U High - Rack-mountable - 1 Year N3K-C3064PQ-10GX

Cisco Nexus 3064 Switch - Manageable - 52 x Expansion Slots - 48, 4 x Expansion Slot, Expansion Slot - 48 x SFP+ Slots - 3 Layer Supported - Redundant Power Supply - 1U High - Rack-mountable - 1 Year N3K-C3064PQ-10GX
Brand: Cisco
Part Number: N3K-C3064PQ-10GX
MSRP: $2,156.99
Availability: 10 or more
Condition: New
Price: $1,797.00
Qty:     - OR -   Add to Wish List
Add to Compare
Nexus 3064 Switch

The Cisco Nexus 3064 supports a wide variety of 1, 10, and 40 Gigabit Ethernet connectivity options. 1 and 10 Gigabit Ethernet connectivity is achieved using SFP+ transceivers in the first 48 ports, and 40 Gigabit Ethernet connectivity is achieved by using QSFP+ transceivers in the last 4 ports.

QSFP+ technology allows smooth transition from 10 to 40 Gigabit Ethernet infrastructures in data centers. The Cisco Nexus 3064 supports connectivity over copper and fiber cables, providing excellent physical-layer flexibility. For low-cost cabling, copper-based 40-Gbps Twinax cables can be used, and for longer cable reaches, short-reach optical transceivers are excellent.
Product Type Layer 3 Switch
Form Factor Rack-mountable
Token Ring Port No
LRE Port No
Uplink Port No
Bypass No
Modular No
Management Port Yes
USB Yes
Number of Total Expansion Slots 52
Expansion Slot Type SFP+, QSFP+
Layer Supported 3
Manageable Yes
Management
  • Web-Based Management
  • Command Line Interface
  • SNMP v1, v2, v3
  • Cisco OHMS
  • Cisco DCNM
  • Syslog
  • Telnet
  • RMON
  • DHCP
  • VLAN
  • QoS
  • MIB
PoE (RJ-45) Port No
Input Voltage 110 V AC, 220 V AC
Power Source Power Supply
Redundant Power Supply Yes
Compatible Rack Unit 1U
Height 1.7"
Width 17.3"
Depth 19.7"
Weight (Approximate) 20.50 lb
Limited Warranty 1 Year
Green Compliant Yes
Green Compliance Certificate/Authority RoHS-5
Port/Expansion Slot Details 4 x 40 Gigabit Ethernet Expansion Slot, 48 x 10 Gigabit Ethernet Expansion Slot
Number of SFP+ Slots 48
Stack Port No
Certifications & Standards
  • IEEE 802.1D: Spanning Tree Protocol
  • IEEE 802.1p: CoS Prioritization
  • IEEE 802.1Q: VLAN Tagging
  • IEEE 802.1s: Multiple VLAN Instances of Spanning Tree Protocol
  • IEEE 802.1w: Rapid Reconfiguration of Spanning Tree Protocol
  • IEEE 802.3z: Gigabit Ethernet
  • IEEE 802.3ad: Link Aggregation Control Protocol (LACP)
  • IEEE 802.3ae: 10 Gigabit Ethernet
  • IEEE 802.1ab: LLDP
  • IEEE 1588-2008: Precision Time Protocol (Boundary Clock)

Safety:

  • UL 60950-1 Second Edition
  • CAN/CSA-C22.2 No. 60950-1 Second Edition
  • EN 60950-1 Second Edition
  • IEC 60950-1 Second Edition
  • AS/NZS 60950-1
  • GB4943

EMC: Emissions:

  • 47CFR Part 15 (CFR 47) Class A
  • AS/NZS CISPR22 Class A
  • CISPR22 Class A
  • EN55022 Class A
  • ICES003 Class A
  • VCCI Class A
  • EN61000-3-2
  • EN61000-3-3
  • KN22 Class A
  • CNS13438
