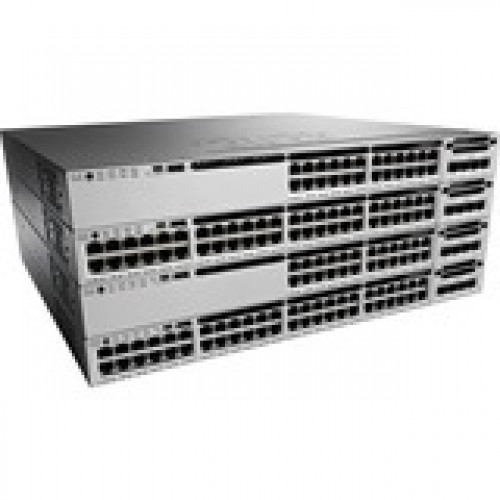

The Cisco® Catalyst® 3850 Series is the next generation of enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco's new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans and power supplies.With speeds that reach 10Gbps, the Cisco Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.
| Product Type | Layer 3 Switch |
| Form Factor | Rack-mountable |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-X |
| Token Ring Port | No |
| LRE Port | No |
| Bypass | No |
| Management Port | Yes |
| USB | Yes |
| Number of PoE+ (RJ-45) Ports | 24 |
| Number of Total Expansion Slots | 12 |
| Expansion Slot Type | SFP+ |
| Layer Supported | 3 |
| Manageable | Yes |
| Management |
|
| Standard Memory | 4 GB |
| Memory Technology | DRAM |
| Flash Memory | 2 GB |
| PoE (RJ-45) Port | Yes |
| Input Voltage | 110 V AC, 220 V AC |
| Power Source | Power Supply |
| Redundant Power Supply | Yes |
| Compatible Rack Unit | 1U |
| Height | 1.8" |
| Width | 17.5" |
| Depth | 17.7" |
| Weight (Approximate) | 12.79 lb |
| Limited Warranty | Lifetime |
| Green Compliant | Yes |
| Green Compliance Certificate/Authority | RoHS-5 |
| Port/Expansion Slot Details | 12 x 10 Gigabit Ethernet Expansion Slot |
| Number of SFP+ Slots | 12 |
| Package Contents |
|
| Certifications & Standards | IEEE Standards:
Safety Certifications:
Electromagnetic Emissions Certifications:
|
| Twisted Pair Cable Standard | Category 5e |
| MTBF | 269450 Hour |
