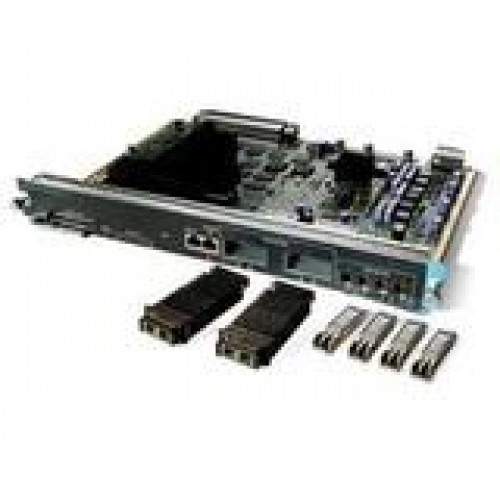

Cisco Catalyst 4500 Supervisor Engine V-10GE - 1 x CompactFlash Card Slot , 4 x SFP (mini-GBIC) , 2 x X2 WS-X4516-10GE

Cisco Catalyst 4500 Supervisor Engine V-10GE - 1 x CompactFlash Card Slot , 4 x SFP (mini-GBIC) , 2 x X2 WS-X4516-10GE
Brand: Cisco
Part Number: WS-X4516-10GE
MSRP: $158.99
Availability: 10 or more
Condition: New
Price: $132.00
Qty:     - OR -   Add to Wish List
Add to Compare
Catalyst 4500 Supervisor Engine V-10GE

The Cisco Catalyst 4500 Series Supervisor Engine V-10GE continues the nonblocking, robust Layer 2-4 switching found in previous Cisco Catalyst 4500 Series supervisor engines with the addition of wire-speed 10-Gigabit Ethernet uplinks, 136-Gbps capacity and 102-mpps throughput, and additional features to further enhance resilient control of converged data, voice, and video networks with high availability to help enable business resiliency for enterprise and metropolitan (metro) Ethernet customers. Network control extends from the backbone to the edge with intelligent services such as granular quality of service (QoS), Internet security, and network management.

The Cisco Catalyst Supervisor Engine V-10GE includes dual wire-speed 10-Gigabit Ethernet ports (X2 optics) as well as 4 alternative wired Gigabit Ethernet ports (Small Form-Factor Pluggable [SFP] optics) on the faceplate to maximize the flexibility of deployment options. The combination of Gigabit Ethernet and 10-Gigabit Ethernet ports on the same supervisor engine allows for network future-proofing with an easy migration path from Gigabit Ethernet to 10 Gigabit Ethernet by simply adding 10-Gigabit Ethernet optical interfaces. The ability to choose between Gigabit Ethernet uplinks and 10-Gigabit Ethernet uplinks on a single supervisor engine further enhances the investment protection of the Cisco Catalyst 4500 Series architecture.

Additional Information
  • Active VLANs: 4000
  • Multicast Entries: 128,000
  • STP Instance: 3000
  • Switched Virtual Interfaces (SVIS): 4000
  • Internet Group Management Protocol (IGMP) Snooping
  • NetFlow Data Export Versions 5 and 8 are supported
  • QoS Sharing on all ports
  • Switching Capacity: 136 Gbps
  • Throughput: 102 mpps
  • Support for 55,000 unicast + 16,000 multicast MAC addresses
  • Support for 131,072 entries in routing table (shared between unicast and multicast)
  • Multilayer Switching: Full Layer 2-4 services and routing
  • Dynamic Buffer Limiting (DBL): Congestion-Avoidance Feature
  • Broadcast Suppression
  • Multicast Suppression
  • CPU: 800 MHz
  • 802.1-in-802.1 (QinQ) in hardware
  • Layer 2 protocol tunneling
  • Jumbo Frames (up to 9216 bytes)
  • Baby Giants (up to 1600 bytes)

NetFlow Features:

  • Flow-table size: 85,000
  • Aggregate policers: 8000 ingress; 8000 egress
  • User-based rate-limiting profiles: 512
  • User-based rate-limiting flows: 85,000

Sophisticated QoS and Traffic Management:

  • Support for four queues per port
  • Strict priority queuing
  • IP differentiated services code point (DSCP)
  • Classification and marking based on IP type of service (ToS) or DSCP
  • Classification and marking based on full Layer 3 and Layer 4 headers
  • Input and output policing based on Layer 3 and Layer 4 headers
  • Support for 8000 policers on ingress and 8000 policers on egress configured as aggregate or individual
  • Shaping and sharing output queue management
  • DBL: Congestion-avoidance feature
  • No performance penalty for granular QoS functions
  • Auto-QoS command-line interface (CLI) for VoIP deployments
Product Type Supervisor Engine
Compatibility

Chassis Support:

  • Catalyst 4503
  • Catalyst 4506
  • Catalyst 4507R
  • Catalyst 4510R
Application/Usage Data Networking
Interfaces/Ports Details 1 x RJ-45 Console Management, 1 x RJ-45 10/100Base-TX Management
Maximum Data Transfer Rate 100 Mbit/s
Number of Total Expansion Slots 7
Expansion Slot Type SFP (mini-GBIC), X2
Limited Warranty 90
