Cisco Catalyst 3750-48PS Stackable Ethernet Switch - 48 x 10/100Base-TX WS-C3750-48PS-S

Cisco Catalyst 3750-48PS Stackable Ethernet Switch - 48 x 10/100Base-TX WS-C3750-48PS-S
Brand: Cisco
Part Number: WS-C3750-48PS-S
MSRP: $68.99
Availability: 10 or more
Condition: New
Price: $57.40
Qty:     - OR -   Add to Wish List
Add to Compare

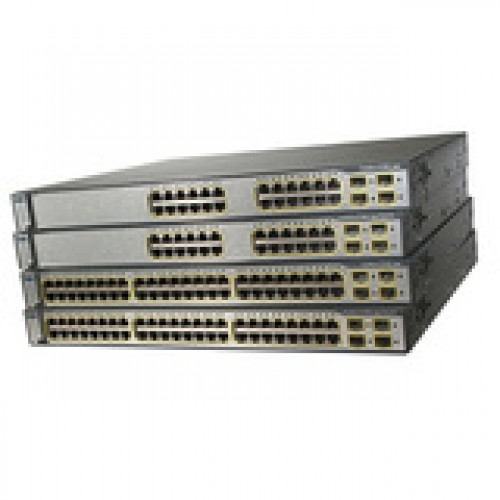

Catalyst 3750-48PS Stackable Ethernet Switch

The Cisco Catalyst 3750 Series switches are an innovative product line that improves LAN operating efficiency by combining industry-leading ease of use and the highest resiliency available for stackable switches. This product series represents the next generation in desktop switches, and features Cisco StackWise technology, a 32-Gbps stack interconnect that allows customers to build a unified, highly resilient switching system one switch at a time.

Additional Information
  • 11,000 unicast routes
  • Configurable up to 1000 IGMP groups and multicast routes
  • Configurable maximum transmission unit (MTU) of up to 9000 bytes,with a maximum Ethernet frame size of 9018 Bytes (Jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging and routing on Fast Ethernet ports
  • Acoustic Noise: 42 dB
  • The Cisco Catalyst 3750 Series stacks up to 9 switches as a single logical unit for a total of 468 Ethernet or Power over Ethernet 10/100 ports or 252 Ethernet 10/100/1000 ports, or 9 10Gigabit Ethernet ports. Individual 10/100 and 10/100/1000 and 10Gigabit Ethernet units may be joined in any combination to evolve with network needs
Additional Warranty Information
  • In the event of discontinuance of product manufacture, Cisco warranty support is limited to five (5) years from the announcement of discontinuance
Product Type Ethernet Switch
Media Type Supported Twisted Pair
Ethernet Technology Fast Ethernet
Network Technology 10/100Base-TX, 10Base-T
Total Number of Network Ports 48
Number of Total Expansion Slots 4
Expansion Slot Type SFP
Number of SFP Slots 4
Layer Supported 3
Manageable Yes
Management
  • Command-line interface (CLI) for detailed configuration
  • Cisco Cluster Management Suite (CMS) Software
  • Web-based tool for quick configuration based on pre-set templates
  • CiscoWorks for network-wide management
  • SNMP v1, v2c, and v3
  • Telnet
Standard Memory 128 MB
Flash Memory 16 MB
Input Voltage 110 V AC, 220 V AC
Power Source Power Supply
Redundant Power Supply Yes
Height 1.7"
Width 17.5"
Depth 14.8"
Weight (Approximate) 13.20 lb
Limited Warranty Lifetime
Number of Network (RJ-45) Ports 48
Port/Expansion Slot Details 4 x Gigabit Ethernet Expansion Slot, 48 x Fast Ethernet Network
Package Contents
  • Catalyst 3750 Switch
  • Catalyst 3750 Switch Hardware Installation Guide
  • About the Catalyst 3750 Documentation flyer
  • AC power cord
  • One RJ-45-to-DB-9 adapter cable
  • Mounting kit containing:
  • Four rubber feet for mounting the switch on a table
  • Two 19-inch rack-mounting brackets
  • Six Phillips flat-head screws for attaching the brackets to the switch
  • Four Phillips machine screws for attaching the brackets to a rack
  • One cable guide and one black Phillips machine screw for attaching the cable guide to one of the mounting brackets
  • One RPS connector cover (for wall mounting)
  • Two Phillips pan-head screws (for attaching the RPS cover)
  • Four Phillips truss-head screws (for wall-mounting brackets)
  • CAB-STACK-50CM: Cisco StackWise 50CM Stacking Cable
Certifications & Standards
  • IEEE 802.3u: 100BASE-TX specification
  • IEEE 802.1s
  • IEEE 802.3af
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.3ad
  • IEEE 802.3x: full duplex on 10BASE-T, 100BASE-TX
  • IEEE 802.1D: Spanning-Tree Protocol
  • Management:
  • BRIDGE-MIB
  • CISCO-CDP-MIB
  • CISCO-CLUSTER-MIB
  • CISCO-CONF-MAN-MIB
  • CISCO-ENTITY-FRU-CONTROL-MIB
  • CISCO-ENVMON-MIB
  • CISCO-FLASH-MIB
  • CISCO-FTP-CLIENT-MIB
  • CISCO-HSRP-MIB
  • CISCO-HSRP-EXT-MIB
  • CISCO-IGMP-FILTER-MIB
  • CISCO-IMAGE-MIB
  • CISCO-L2L3-INTERFACE-CONFIG-MIB
  • CISCO-MAC-NOTIFICATION-MIB
  • CISCO-MEMORY-POOL-MIB
  • CISCO-PAGP-MIB
  • CISCO-PING-MIB
  • CISCO-PROCESS-MIB
  • CISCO-RTTMON-MIB
  • CISCO-STACK-MIB
  • CISCO-STACKMAKER-MIB
  • CISCO-STP-EXTENSIONS-MIB
  • CISCO-SYSLOG-MIB
  • CISCO-TCP-MIB
  • CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
  • CISCO-VLAN-ME
Twisted Pair Cable Standard Category 5
MTBF 166408 Hour
