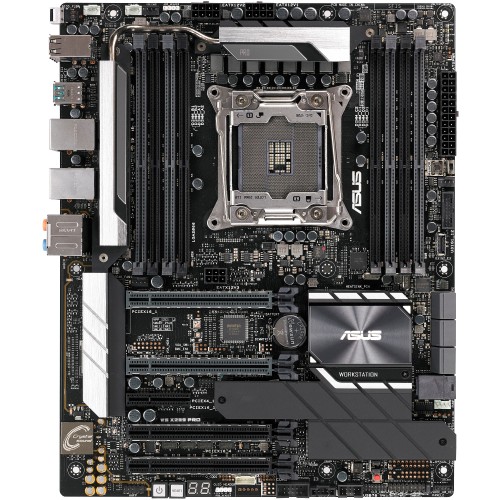

Asus WS X299 PRO/SE Workstation Motherboard - Intel Chipset - Socket R4 LGA-2066 - 128 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 8 x Memory Slots - Gigabit Ethernet - 6 x USB 3.1 Port - 6 x SATA Interfaces WS X299 PRO/SE

Asus WS X299 PRO/SE Workstation Motherboard - Intel Chipset - Socket R4 LGA-2066 - 128 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 8 x Memory Slots - Gigabit Ethernet - 6 x USB 3.1 Port - 6 x SATA Interfaces

Intel LGA 2066 ATX motherboard with DDR4 4133MHz, dual M.2 and M.2 heatsink, U.2, USB 3.1 Gen 2 connectors, ASMB9-iKVM and ASUS Control Center. ASUS Control Center: A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses. ASMB9-iKVM (BMC) : supports remote BIOS updates, fans control, standalone KVM, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics through remote console (Web GUI & CLI) Ultra-efficient VRM heatsink: Metal fin array connected to large surface area via a heatpipe tames X299 thermals to enable unthrottled performance. Next-gen transfer speeds: Up to 32Gbps dual M.2 and U.2, plus up to 10Gbps USB 3.1 Type-A and Type-C connections. Comprehensive IT Infrastructure Management Solution WS X299 PRO/SE features an embedded iKVM module and is bundled with ASUS Control Center software to provide comprehensive in-band and out-of-band management features for small and mid-size businesses: The embedded ASMB9-iKVM module supports remote BIOS updates, fans control, standalone KVM, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics - even if the operating system is down or offline - through a user-friendly, web-based graphical interface that works with all major browsers. ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure. Flagship Performance Make your memory go faster With optimized trace paths for time-aligned signaling and minimal crosstalk, third-generation ASUS T-Topology offers enhanced memory stability and compatibility, allowing support for memory speeds of DDR4-4133MHz and beyond. CPU: Intel LGA 2066 i9-7900X |Motherboard: WS X299 PRO/SE | DRAM: Corsair CMK64GX4M8X4200C19*8 |Power: AURUM PT-1200FM OC Design - ASUS PRO Clock II Technology WS X299 PRO/SE includes a dedicated base-clock (BCLK) generator that extends CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and BCLK overclocking control, providing the flexibility to extract every ounce of performance from the Intel® Core™ X-series processors. Multi-GPU support With support for both NVIDIA® SLI™ and AMD CrossFireX™ 2/3-WAY configurations, WS X299 PRO/SE enables multi-GPU setups so you can harness the full power of the latest graphics technologies to drive games at 4K and beyond. Cooler by Design Ultra-efficient VRM Heatsink Designed for the powerful Intel Core X-series processor with up to 18 cores, WS X299 PRO/SE features a capable thermal design to ensure maximum performance with no CPU throttling. Consisting of an ultra-efficient VRM heatsink with a metal fin array design that maximizes surface area for heat dissipation, plus two additional heatsinks and a connecting heatpipe to further increase cooling performance, this innovative thermal design ensures WS X299 PRO/SE is always ready to handle any task, no matter how demanding.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: X299
Total Processor Supported: 1
Processor Socket: Socket R4 LGA-2066
Processor Supported: Core X-Series
Multi GPU Supported: CrossFireX, SLI
Number of Memory Slots: 8
Memory Form Factor: UDIMM, DIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 4133 MHz, 3600 MHz, 2666 MHz, 2400 MHz, 4000 MHz
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
Intel VROC: Yes
Intel RSTe: Yes
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0
Onboard Video: No
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 5
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 4
Total Number of USB Ports: 10
Number of USB 2.0 Ports: 4
Number of USB 3.1 Ports: 6
S/PDIF: Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 4
Number of Onboard USB 3.1 Ports: 2
Form Factor: ATX
Country of Origin: China
