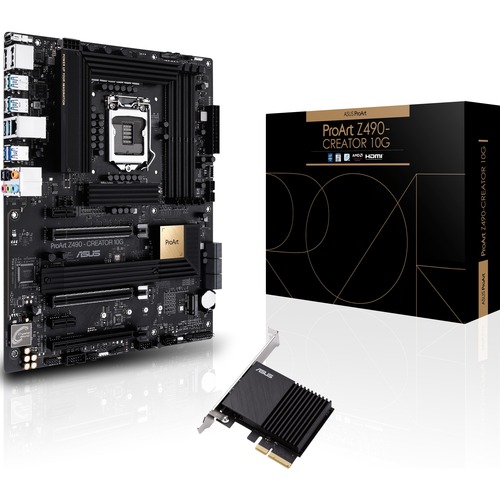

Asus ProArt Z490-CREATOR 10G Desktop Motherboard - Intel Chipset - Socket LGA-1200 - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 6 x USB 3.1 Port - HDMI - 1 x RJ-45 - 6 x SATA Interfaces PROART Z490-CREATOR 10G

Asus ProArt Z490-CREATOR 10G Desktop Motherboard - Intel Chipset - Socket LGA-1200 - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 6 x USB 3.1 Port - HDMI - 1 x RJ-45 - 6 x SATA Interfaces

Intel® Z490 LGA 1200 ATX motherboard for content creators features a 10G LAN card, onboard 2.5G Intel LAN, dual Thunderbolt™ 3 Type-C ports, dual M.2, USB 3.2 Gen 2 ports, SATA 6 Gbps Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors Ultrafast connectivity: Two Thunderbolt™ 3 Type-C ports, two M.2, HYPER 10G LAN card and onboard 2.5G Intel® LAN provide power and speed Intelligent optimization: AI Overclocking, AI Cooling and CreationFirst automatically optimize CPU frequencies, fan speeds and network traffic for enhanced system performance and work efficiency Powerful performance: 12+2 DrMOS power stages, multi-GPU support and improved memory frequency and stability empower creativity Trusted stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for durability ProArt Creator Hub: Centralized software for one-stop monitoring and management of ASUS ProArt series products enables efficient content creation workflows Every aspect of ASUS ProArt motherboards is built to remove barriers and deliver optimal performance to content creators who work in 3D modeling and rendering, animation or media production. The series empowers you to concentrate on your creativity and expand what is possible. ULTRAFAST CONNECTIVITY FOR SEAMLESS SPEEDOnboard 2.5G Intel® Ethernet and optional 10G Ethernet card are both provided to boost cloud- and internet-based communication for accelerated workflow. A comprehensive set of high-performance I/O ports - including two Thunderbolt™ 3 Type-C ports - enable quick data transfer speeds and extensive storage options with flexible, hassle-free connectivity. Dual Thunderbolt™ 3 Type-C Ports Two Thunderbolt 3 Type-C ports deliver up to 40 Gbps of aggregate interface bandwidth for quickly completing tasks that involve data transfer. HYPER 10G LAN Card Designed to meet the high standards of content creators and power users, HYPER 10G LAN card is up to 10 times faster than standard Gigabit Ethernet. Onboard 2.5G Intel® Ethernet Featuring Intel® I225-V Ethernet, you can take advantage of the 2.5 Gigabit bandwidth to smoothly stream high-resolution videos and enjoy faster file transfers. Dual M.2 slots One M.2 slot supports SATA and PCIe® 3.0 x4 modes, and the other supports PCIe 3.0 x4 for NVMe, offering up to 32 Gbps data-transfer speeds and flexible M.2 interfaces. Dual Thunderbolt™ 3 Type-C Ports Each Thunderbolt 3 port supports DisplayPort 1.4 output and can daisy-chain to up to six devices, with 15 watts of power to fast-charge devices. ProArt Z490-CREATOR 10G features two Thunderbolt 3 ports, offering a total of up to 40 Gbps of aggregate interface bandwidth, which allows numerous devices to be connected to the motherboard at once with ultrafast data transfer speeds. INTELLIGENT OPTIMIZATIONASUS ProArt Z490-CREATOR 10G offers simple and flexible tools that enhance almost every aspect of your content-creation system, giving you the fast, intuitive control needed for efficient workflow. It features dynamic automated tuning with AI overclocking and AI cooling, in addition to CreationFirst software, which prioritizes and optimizes your network traffic for faster, lag-free online work.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: Z490
Total Processor Supported: 1
Processor Socket: Socket LGA-1200
Processor Supported: Pentium Gold, Celeron, Core i3, Core i5, Core i7, Core i9
Multi GPU Supported: CrossFireX
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 4600 MHz, 4500 MHz, 4400 MHz, 4266 MHz, 4133 MHz, 4000 MHz, 3866 MHz, 3733 MHz, 3600 MHz, 3466 MHz, 3333 MHz, 3200 MHz, 3000 MHz, 2933 MHz, 2666 MHz, 2400 MHz, 2133 MHz, 2800 MHz, 3400 MHz, 3300 MHz, 4800 MHz
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
Intel RST: Yes
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 5
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 3
Total Number of USB Ports: 6
Number of USB 3.2 Ports: 6
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Thunderbolt: Yes
Number of Thunderbolt 3 Ports: 2
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 3
Form Factor: ATX
Width: 12"
Depth: 9.2"
Package Contents:

ProArt Z490-CREATOR 10G Desktop Motherboard, I/O Shield, 4 x SATA 6Gb/s cable(s), 1 x M.2 Screw Package, 1 x Supporting DVD, 1 x DisplayPort cable, User Manual, 1 x CPU Fan Holder, 1 x 2-in-1 Rubber pad, 1 x HYPER 10G LAN CARD

Environmentally Friendly: Yes
Environmental Certification: RoHS
