Asus ProArt B550-CREATOR Desktop Motherboard - AMD Chipset - Socket AM4 - ATX - Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 9, Ryzen 5 Pro, Ryzen 7 PRO, Ryzen 9 PRO, Ryzen 3 PRO Processor Supported DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - HDMI - Dis

Asus ProArt B550-CREATOR Desktop Motherboard - AMD Chipset - Socket AM4 - ATX - Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 9, Ryzen 5 Pro, Ryzen 7 PRO, Ryzen 9 PRO, Ryzen 3 PRO Processor Supported DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - HDMI - Dis
Brand: Asus
Part Number: PROART B550-CREATOR
MSRP: $398.99
Availability: 10 or more
Condition: New
Price: $332.38
Qty:     - OR -   Add to Wish List
Add to Compare

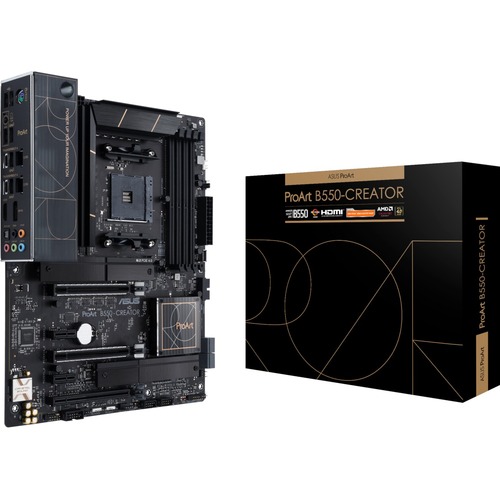

Asus ProArt B550-CREATOR Desktop Motherboard - AMD Chipset - Socket AM4 - ATX - Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 9, Ryzen 5 Pro, Ryzen 7 PRO, Ryzen 9 PRO, Ryzen 3 PRO Processor Supported DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - HDMI - DisplayPort - 4 x SATA Interfaces

AMD B550 Ryzen AM4 ATX motherboard for content creators features PCIe® 4.0, dual Thunderbolt™ 4 Type-C ports, dual Intel® 2.5Gb Ethernet, dual M.2 with heatsinks, USB 3.2 Gen 2 and advanced security management AM4 socket: Ready for AMD Ryzen™ 5000 Series / 4000 G-Series / 3000 Series desktop processors Powerful I/O: Dual Thunderbolt 4 Type-C ports, dual 2.5G onboard Ethernet, USB 3.2 Gen 2 plus HDMI™ 2.1 and DisplayPort™ 1.2 output Unthrottled Performance: PCI 4.0-ready, 12+2 power stages with high-quality alloy chokes and durable capacitors Advanced Security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express ProArt Gives You More: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control Trusted Stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot for enhanced durability ProArt B550-CREATOR | LET YOUR CREATIVITY FLOW The ProArt B550-Creator motherboard equips creative professionals with powerful hardware and software tools to accelerate their workflows. Featuring comprehensive, efficient cooling and lightning-fast connectivity, this board maximizes the computing power of the latest AMD Ryzen processors to let you create faster and get more done. Combined with a stylish design, advanced security features and the trusted stability and reliability ASUS motherboards are known for, ProArt B550-Creator perfects the art of performance to empower your creative flow. Lightning-Speed Connectivity A comprehensive array of powerful I/O ports - including two Thunderbolt™ 4 ports, two 2.5G Ethernet and four USB 3.2 Gen 2 ports - enables quick data transfers and extensive storage options with flexible, hassle-free connectivity. Dual Thunderbolt™ 4 Type-C® Each Thunderbolt™ 4 port delivers up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices and drives. Thunderbolt 4 also supports up to two external 4K displays and extends PCIe bandwidth to up to 32 Gbps. Dual 2.5G Ethernet Experience faster data transfers and high-res video streaming with two Intel 2.5G Ethernet (I225-V) ports. ProArt B550-Creator also features CreationFirst, exclusive network optimization software that allocates more bandwidth to speed up essential apps for your work. Unthrottled Performance ProArt B550-Creator provides robust power delivery and comprehensive cooling to handle the latest AMD Ryzen™ processors. It also supports PCIe 4.0, providing everything you need for the most demanding multithreaded tasks like 3D or video rendering and software compiling. Go Faster with PCIe 4.0 To maximize the potential of the AMD Ryzen 3000 and 5000 Series processors, ProArt B550-Creator features faster PCIe® 4.0 x16 slots for high-powered graphics cards as well as PCIe 4.0 and PCIe 3.0 M.2 sockets to support high-bandwidth NVMe SSD RAID for faster content creation. Robust Power Design ProArt B550-Creator provides robust power delivery to handle the full power of latest Ryzen processors and improve overall system stability. Teamed Power Stages 12+2 power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest AMD Ryzen processors demand. Digi+ Power Control The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.


Technical Specifications:
Chipset Manufacturer: AMD
Chipset Model: B550
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported: Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 9, Ryzen 5 Pro, Ryzen 7 PRO, Ryzen 9 PRO, Ryzen 3 PRO
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 3000 MHz, 3200 MHz, 3333 MHz, 3466 MHz, 3600 MHz, 3733 MHz, 3866 MHz, 4000 MHz, 4133 MHz, 4466 MHz, 4600 MHz, 4400 MHz, 4800 MHz, 4266 MHz, 4866 MHz, 5100 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 10, 1
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
2.5Gigabit Ethernet: Yes
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 5
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 3
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 2 Type-A Ports: 4
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 2
Number of Thunderbolt 4 Ports: 2
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 3
Onboard S/PDIF Header: Yes
Form Factor: ATX
Width: 12"
Depth: 9.6"
Package Contents:
    ProArt B550-CREATOR Desktop Motherboard, 2 x SATA 6Gb/s Cables, 1 x DP to DP Cable for Thunderbolt™ 4, 1 x M.2 Rubber Package(s), Installation Media, 1 x Support DVD, 1 x ACC Express Activation Key Card, 1 x User Manual

Brand Compatibility: AMD
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Switzerland
