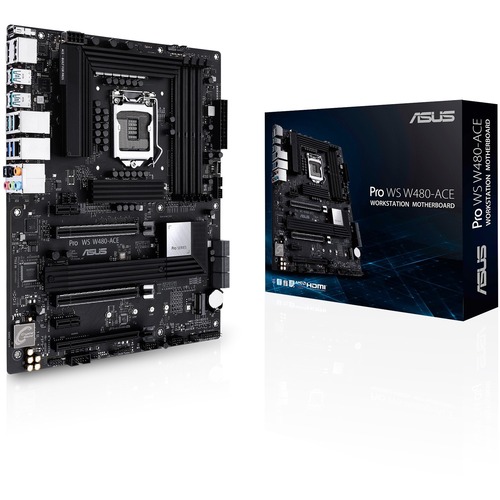

Asus PRO WS W480-ACE Workstation Motherboard - Intel Chipset - Socket LGA-1200 - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - 6 x USB 3.1 Port - HDMI - 2 x RJ-45 - 6 x SATA Interfaces PRO WS W480-ACE

Asus PRO WS W480-ACE Workstation Motherboard - Intel Chipset - Socket LGA-1200 - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - 6 x USB 3.1 Port - HDMI - 2 x RJ-45 - 6 x SATA Interfaces

Intel ATX workstation motherboard LGA 1200 for Intel Xeon W-series processors with DDR4-2933 ECC memory, ASUS Control Center Express, Dual LAN, RTL8117, Dual Type-C Thunderbolt 3 ports, Dual M.2 and USB 3.2 Intel Xeon W-series processors and DDR4-2933 ECC memory for professional performance and stability ASUS Control Center Express software for real-time IT management and monitoring RTL8117 management controller provides system hardware-level access for remote maintenance and troubleshooting Dual LAN ports including an onboard Intel 2.5 Ethernet port for faster data-transfer speeds Dual Thunderbolt™ 3 Type-C ports support up to twelve devices via daisy chaining and provide 15 watts of power to fast-charge devices Powerful performance with 12+2 power stages, multi-GPU support and improved memory frequency and stability empower creativity Next-gen connectivity with two USB 3.2 Type-C, four USB 3.2 Type-A, one front panel Type-C connector and dual M.2 slots PRO WORKSTATION MOTHERBOARDASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software, so they''re also an efficient and cost-effective option for IT administrators. Workstation Exclusive Designed for creative professionals who require outstanding performance, reliability and enhanced security, ASUS Pro WS W480-ACE is powered by the latest Intel Xeon W-1200 workstation processors for always-on usage scenarios and supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability. ASUS Control Center Express The best business performance requires smart IT management. ASUS Control Center Express is an intuitive and secure software designed to simplify IT operations and improve workload productivity by providing comprehensive control of all the systems in your organization. Plus, ASUS Control Center Express is compatible with over 100 ASUS motherboards to give you more upgrade flexibility and less compatibility issues. Hardware-level Access Control Pro WS W480-ACE features an onboard RTL8117 management LAN port that gives IT administrators reliable remote hardware-level access to the workstation in the event of a system crash or when no OS is installed. With the ability to manage BIOS settings and perform updates, hardware resets and even OS installations, hardware-level access on Pro WS W480-ACE makes IT management of your business systems easier and more efficient. Dual Ethernet Bandwidth Boosted connectivity with dual onboard Ethernet ports. Intel 2.5G Ethernet upgrades your traditional LAN connection with an up to 2.5X bandwidth improvement. Using your existing Ethernet cable, you can experience faster file transfers and immediately stream high-resolution videos. Dual Thunderbolt™ 3 Type-C Ports Pro WS W480-ACE features two Thunderbolt 3 ports, offering a total of up to 40 Gbps of aggregate interface bandwidth, which allows numerous devices to be connected to the motherboard at once with ultrafast data transfer speeds. Each Thunderbolt 3 port supports DisplayPort 1.4 output and can daisy-chain to up to six devices, with 15 watts of power to fast-charge devices.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: W480
Total Processor Supported: 1
Processor Socket: Socket LGA-1200
Processor Supported: Xeon, Core i3, Core i5, Core i7, Core i9, Celeron, Pentium Gold
Multi GPU Supported: CrossFireX
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 4800 MHz, 4600 MHz, 4500 MHz, 4400 MHz, 4266 MHz, 4133 MHz, 4000 MHz, 3866 MHz, 3733 MHz, 3600 MHz, 3466 MHz, 3400 MHz, 3333 MHz, 3300 MHz, 3200 MHz, 3000 MHz, 2933 MHz, 2800 MHz, 2666 MHz, 2400 MHz, 2133 MHz
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
2.5Gigabit Ethernet: Yes
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 5
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 3
Total Number of USB Ports: 6
Number of USB 3.2 Ports: 6
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 2
Number of Thunderbolt 3 Ports: 2
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 3
Form Factor: ATX
Width: 12"
Depth: 9.2"
Package Contents:

PRO WS W480-ACE Workstation Motherboard, 4 x SATA 6Gb/s cables, 1 x DP to DP Cable for Thunderbolt™ 3, 1 x I/O Shield, 1 x M.2 Rubber Package(s), 1 x M.2 SSD Screw Package(s), 1 x Fan Bracket, 1 x Support DVD, 1 x User Manual, 1 x ACC Express Activation Key Card

Brand Compatibility: Intel
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
