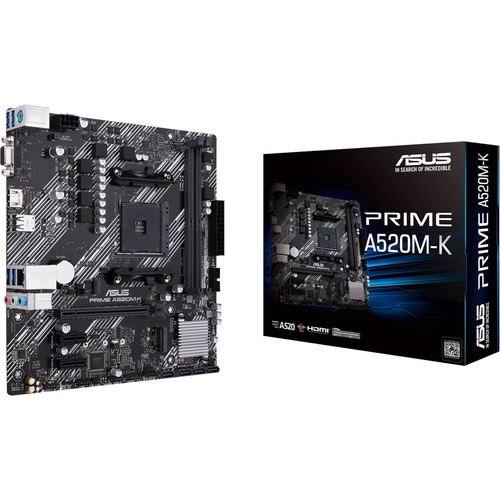

Asus Prime A520M-K Desktop Motherboard - AMD Chipset - Socket AM4 - 64 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 2 x Memory Slots - Gigabit Ethernet - 4 x USB 3.1 Port - HDMI - 1 x RJ-45 - 4 x SATA Interfaces PRIME A520M-K

Asus Prime A520M-K Desktop Motherboard - AMD Chipset - Socket AM4 - 64 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 2 x Memory Slots - Gigabit Ethernet - 4 x USB 3.1 Port - HDMI - 1 x RJ-45 - 4 x SATA Interfaces

AMD A520 (Ryzen AM4) micro ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors Comprehensive cooling: PCH heatsink and Fan Xpert Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A 5X Protection III: Multiple hardware safeguards for all-around system protection PRIME ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime A520 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. Tune It Your Way Comprehensive controls form the foundation of the ASUS Prime series. The Prime A520 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work - maximizing your productivity. Cooler by Design PRIME A520M-K is engineered with an array of hybrid fan headers and features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS, ensuring your rig stays cool and stable under intense workloads. Build on a Solid Foundation Prime A520 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. M.2(up to 32 Gbps) Achieve speed with onboard M.2 M.2 Slot supports data-transfer speed up to 32Gbps via x4 PCI Express® 3.0 bandwidth. It''s the perfect choice for an operating system or application drive, providing fast access to data. Little Things Make a Big Difference Prime A520 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive interface that let you customize your system to create a unique personal look. Outstanding Audio Combined onboard features deliver elevated audio Intelligent design and premium hardware create audio quality unlike anything you''ve ever experienced. Audio Shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference. Separate Layer for Left and Right Tracks Ensures minimal crosstalk between audio paths.

Technical Specifications:
Chipset Manufacturer: AMD
Chipset Model: A520
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported: Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 9, Ryzen 3 PRO, Ryzen 5 Pro, Ryzen 7 PRO, Ryzen 9 PRO
Number of Memory Slots: 2
Memory Form Factor: UDIMM, DIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 4600 MHz, 4400 MHz, 4000 MHz, 3866 MHz, 3733 MHz, 3600 MHz, 3466 MHz, 3333 MHz, 3200 MHz, 3000 MHz, 2800 MHz, 2666 MHz, 2400 MHz, 2133 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10, 1, 0
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 2
Number of USB 3.2 Ports: 4
VGA: Yes
HDMI: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 2
Onboard S/PDIF Header: Yes
Form Factor: Micro ATX
Width: 8.9"
Depth: 8.7"
Package Contents:

Prime A520M-K Desktop Motherboard, User's Manual, I/O Shield, 2 x SATA 6Gb/s Cable(s), 1 x Supporting DVD, 1 x M.2 SSD Screw Package(s)

Brand Compatibility: AMD
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
