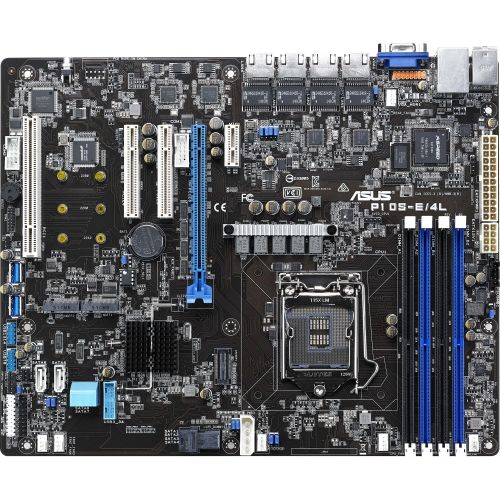

Asus P10S-E/4L Server Motherboard - Intel Chipset - Socket H4 LGA-1151 - ATX - 1 x Processor Support - 64 GB DDR4 SDRAM Maximum RAM - 2.13 GHz Memory Speed Supported - UDIMM - 4 x Memory Slots - Serial ATA/600 RAID Supported Controller - 10, 5, 1, 0 RAID

Asus P10S-E/4L Server Motherboard - Intel Chipset - Socket H4 LGA-1151 - ATX - 1 x Processor Support - 64 GB DDR4 SDRAM Maximum RAM - 2.13 GHz Memory Speed Supported - UDIMM - 4 x Memory Slots - Serial ATA/600 RAID Supported Controller - 10, 5, 1, 0 RAID
Brand: Asus
Part Number: P10S-E/4L
MSRP: $418.99
Availability: 10 or more
Condition: New
Price: $348.45
Qty:     - OR -   Add to Wish List
Add to Compare
Asus P10S-E/4L Server Motherboard - Intel Chipset - Socket H4 LGA-1151 - ATX - 1 x Processor Support - 64 GB DDR4 SDRAM Maximum RAM - 2.13 GHz Memory Speed Supported - UDIMM - 4 x Memory Slots - Serial ATA/600 RAID Supported Controller - 10, 5, 1, 0 RAID Levels - On-board Video Chipset - 2 x USB 3.0 Port - ASPEED AST2400 - Gigabit Ethernet - 2 x PCI Express x8 Slots - 1 x PCI Express x16 Slots - 4 x USB Ports - VGA - 2 x M.2 Interfaces - 8 x SATA Interfaces

Extreme Expansion with Platinum Grade Power Saving Technology Dual M.2 build RAID0 for better performance PCI support extend life cycle for legacy device Quad Intel I210 Server Class GbE delivering high networking bandwidth Platinum-grade power efficiency with ultra longevity solid CAP & Beat Thermal Choke II


Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C236
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Core i3, Pentium, Xeon, Celeron
Number of Memory Slots: 4
Memory Form Factor: UDIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2133 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 3
Number of PCI Express x8 Slots: 2
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 2
VGA: Yes
Number of SATA Interfaces: 8
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 8
Number of Onboard USB 3.0 Ports: 4
Form Factor: ATX
Width: 12"
Depth: 9.6"
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: China
