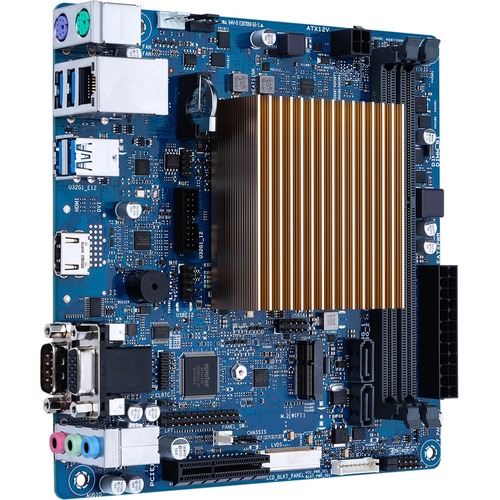

Asus J3455I-CM-A Desktop Motherboard - Intel Chipset - Socket BGA-1296 - Mini ITX - Intel Celeron J3455 - 8 GB DDR3L SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - 2 x SATA Interfaces J3455I-CM-A

Asus J3455I-CM-A Desktop Motherboard - Intel Chipset - Socket BGA-1296 - Mini ITX - Intel Celeron J3455 - 8 GB DDR3L SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - 2 x SATA Interfaces

Low-power, fan-less mini-ITX motherboard for Intel Celeron® Quad-Core J3455 processors, 2 x U-DIMM slots, VGA, HDMI, LVDS, M.2 E Key, 2 x COM. Fan-less mini-ITX Industrial MB with Intel Celeron® J3455 processors Supports 3 displays configuration by multiple interface: HDMI/ VGA /LVDS 4-year longevity supply with EOL and Last Buy Notice Advanced I/O and connectivity features Wide temperature range endurance: 0-50°C ASUS J3455I-CM-A is an Industrial MB with stable and reliable performance. J3455I-CM-A includes dual COM ports, M.2 E Key slot, PCIe2.0 x 4, parallel header and supports multi graphic interface: HDMI/VGA/LVDS. J3455I-CM-A is designed for long-lasting stability and reliability in embedded application. As the world''s No.1 motherboard brand, ASUS offers MBs and SBCs with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.

Technical Specifications:
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket BGA-1296
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Celeron
Integrated Processor Model: J3455
Integrated Processor Speed: 1.50 GHz
Integrated Processor Core: Quad-core (4 Core)
Number of Memory Slots: 2
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 8 GB
Memory Technology: DDR3L SDRAM
Memory Speed Supported: 1866 MHz, 1600 MHz, 1333 MHz
Controller Type: Serial ATA/600
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: Intel
Graphics Controller Model: HD Graphics 500
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x4 Slots: 1
Total Number of USB Ports: 4
Number of USB 3.2 Ports: 4
VGA: Yes
HDMI: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 2
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 2
Form Factor: Mini ITX
Width: 6.7"
Depth: 6.7"
Package Contents:

J3455I-CM-A Desktop Motherboard, 1 x IO shield, 1 x SATA 6G CABLE, 1 x M.2 screw pack

Brand Compatibility: Intel
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
