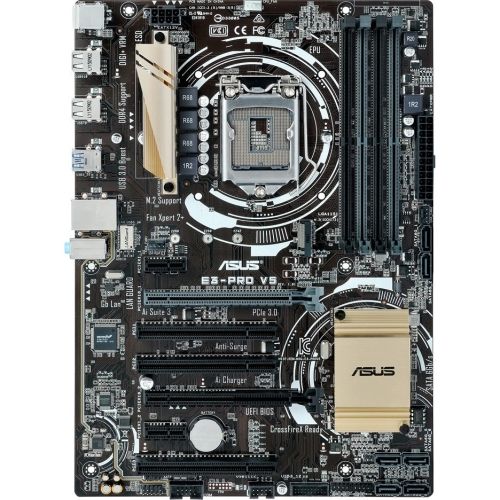

Asus E3-PRO V5 Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - ATX - 1 x Processor Support - 64 GB DDR4 SDRAM Maximum RAM - 2.13 GHz Memory Speed Supported - DIMM - 4 x Memory Slots - Serial ATA/600 RAID Supported Controller - 10, 5, 1, 0 RAID

Asus E3-PRO V5 Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - ATX - 1 x Processor Support - 64 GB DDR4 SDRAM Maximum RAM - 2.13 GHz Memory Speed Supported - DIMM - 4 x Memory Slots - Serial ATA/600 RAID Supported Controller - 10, 5, 1, 0 RAID Levels - 4 x USB 3.0 Port - 7.1 Audio Channels - Gigabit Ethernet - 2 x PCI Express x1 Slots - 2 x PCI Express x16 Slots - 8 x USB Ports - 1 x M.2 Interfaces - Onboard S/PDIF Header - 6 x SATA Interfaces

Perfect ATX gaming board for Xeon E3-1200 v5 processors LGA1151 socket for Intel® Xeon® E3-1200 v5 processors and 6th-genereation CoreTM, Pentium® and Celeron® processors Dual-channel DDR4 2133 support SupremeFX: Flawless audio that makes you part of the game Sonic Radar ll: Scan and detect your enemies to dominate Intel Gigabit Ethernet, LANGuard and GameFirst technology: Top-speed protected networking RAMCache: Speed up your game loads Gamer''s Guardian: Highly-durable components and smart DIY features USB 3.1 Type-A/C and M.2: Ultra-speedy transfers for faster gaming

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C232
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Xeon, Celeron, Pentium
Multi GPU Supported: CrossFireX
Number of Memory Slots: 4
Memory Form Factor: DIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2133 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 7
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 8
Number of USB 3.0 Ports: 4
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 4
Number of Onboard USB 3.0 Ports: 2
Onboard S/PDIF Header: Yes
Form Factor: ATX
Width: 12"
Depth: 9.6"
Package Contents:

E3-PRO V5 Desktop Motherboard, User's Manual, I/O Shield, 4 x SATA 6Gb/s Cable(s), 1 x M.2 Screw Package, 1 x Supporting DVD, Support Disc
Drivers, ASUS Utilities, ASUS EZ Update , Anti-virus software (OEM version)

Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
