Home » Brand » Asus » Asus Desktop Motherboard - Intel X99 Chipset - Socket LGA 2011-v3 - ATX - 1 x Processor Support - 64 GB DDR4 SDRAM Maximum RAM - 3.20 GHz (O.C.) Memory Speed Supported - 8 x Memory Slots - SLI, CrossFireX Support - Serial ATA/600 RAID Supported Controller

Asus Desktop Motherboard - Intel X99 Chipset - Socket LGA 2011-v3 - ATX - 1 x Processor Support - 64 GB DDR4 SDRAM Maximum RAM - 3.20 GHz (O.C.) Memory Speed Supported - 8 x Memory Slots - SLI, CrossFireX Support - Serial ATA/600 RAID Supported Controller

Asus Desktop Motherboard - Intel X99 Chipset - Socket LGA 2011-v3 - ATX - 1 x Processor Support - 64 GB DDR4 SDRAM Maximum RAM - 3.20 GHz (O.C.) Memory Speed Supported - 8 x Memory Slots - SLI, CrossFireX Support - Serial ATA/600 RAID Supported Controller
Brand: Asus
Part Number: X99-A
Availability: 1
Condition: New
Price: Almost Gone - Email for Pricing
Qty:     - OR -   Add to Wish List
Add to Compare

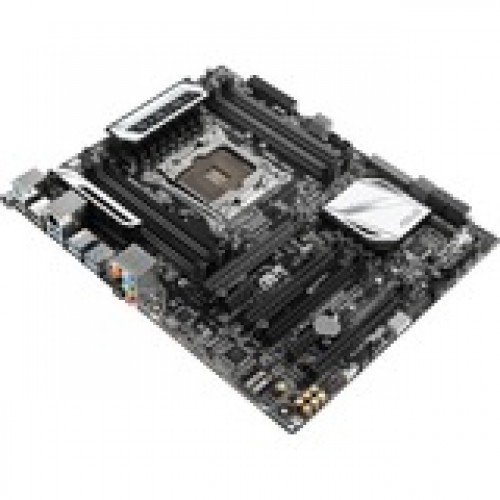

X99-A Rev. 1.01 Desktop Motherboard

Intel® Core™ i7 Processor LGA2011-v3 Ready

This motherboard supports Intel® Core™ i7 processors in the LGA2011-v3 package, with memory and PCI Express controllers integrated to support 4-channel (8 DIMM) DDR4 memory and 40/28 PCI Express 3.0/2.0 lanes.

Intel® X99 Express Chipset

The Intel® X99 Express Chipset is a single-chipset design that supports socket LGA2011-v3 Intel® Core™ i7 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X99 provides a maximum 6 USB 3.0 ports, 10 SATA 6Gbit/s ports for faster data retrieval.
Product Type Desktop Motherboard
Form Factor ATX
Number of Total Expansion Slots 6
Memory Technology DDR4 SDRAM
Width 12"
Depth 9.6"
Limited Warranty 3 Year
Green Compliant Yes
Green Compliance Certificate/Authority RoHS, WEEE
Number of Network (RJ-45) Ports 1
Package Contents
  • X99-A Rev. 1.01 Desktop Motherboard
  • User's Manual
  • Q-Shield
  • 4 x SATA 6Gb/s Cables
  • 1 x SLI Bridge
  • 1 x Q-connector (2 in 1)
Certifications & Standards
  • KC
  • CE
  • C-Tick
  • BSMI
  • FCC
Network (RJ-45) Yes
Processor Socket Socket LGA 2011-v3
Processor Supported Xeon, Core i7
Processor Technology Turbo Boost Technology 2.0, Smart Response Technology
64-bit Processing Yes
Chipset Manufacturer Intel
Chipset Model X99
Maximum Memory 64 GB
Memory Standard DDR4-3200/PC4-25600 (O.C.), DDR4-3000/PC4-24000 (O.C.), DDR4-2800/PC4-22400 (O.C.), DDR4-2666/PC4-21300 (O.C.), DDR4-2400/PC4-19200 (O.C.), DDR4-2133/PC4-17000
Number of PCI Express x16 Slots 4
Total Number of USB Ports 10
Number of USB 2.0 Ports 4
Total Processor Supported 1
Multi GPU Supported SLI, CrossFireX
Number of Memory Slots 8
Memory Form Factor DIMM
Memory Speed Supported 3.20 GHz (O.C.), 3 GHz (O.C.), 2.80 GHz (O.C.), 2.67 GHz (O.C.), 2.40 GHz (O.C.), 2.13 GHz
Controller Type Serial ATA/600
RAID Supported Yes
RAID Levels 0, 1, 5, 10
Audio Channels 7.1
Gigabit Ethernet Yes
Total Number of PCI Express Slots 6
Number of PCI Express x1 Slots 2
Number of USB 3.0 Ports 6
S/PDIF Yes
Number of SATA Interfaces 8
Number of SATA Express Interfaces 1
Total Number of Onboard USB Ports 8
Number of Onboard USB 3.0 Ports 4
Onboard S/PDIF Header Yes
Country of Origin China
Onboard Video No
Sound Controller Manufacturer Realtek
Sound Controller Model ALC1150
PCI Express Standard PCI Express 3.0, PCI Express 2.0
Audio Line In Yes
Audio Line Out Yes
Microphone Port Yes
Number of S/PDIF Out Ports 1
PS/2 Port Yes
Number of PS/2 Ports 1
Number of Onboard USB 2.0 Ports 4
Onboard Serial Header Yes
Onboard Thunderbolt Header Yes
Buttons & Keys BIOS Flashback, TPU, EPU, MemOK, Power, Reset, EZ XMP
Power Supply Supported ATX12V, EATX12V
