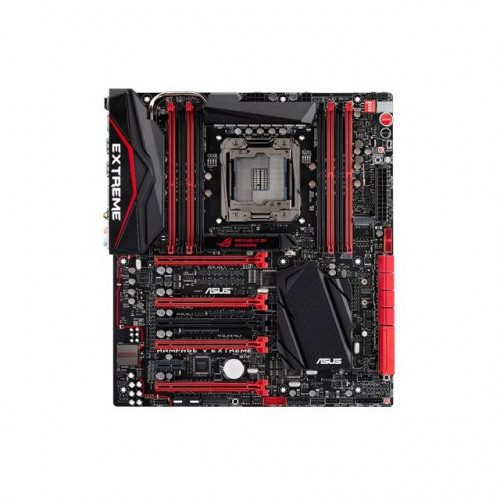

Asus RAMPAGE V EXTREME LGA2011-v3/ Intel X99/ DDR4/ 4-Way CrossFireX & 4-Way SLI/ SATA3&USB3.0/ M.2&SATA Express/ A&GbE/ EATX Motherboard

Asus RAMPAGE V EXTREME LGA2011-v3/ Intel X99/ DDR4/ 4-Way CrossFireX & 4-Way SLI/ SATA3&USB3.0/ M.2&SATA Express/ A&GbE/ EATX Motherboard
Brand: Asus
Part Number: MB-RAP5EXM
MSRP: $738.99
Availability: 10 or more
Condition: New
Price: $615.28
Qty:     - OR -   Add to Wish List
Add to Compare

Specifications

  • Mfr Part Number: RAMPAGE V EXTREME
  • CPU: LGA2011-v3
    • Supports Intel Core i7 Processors
    • Supports Intel 22 nm CPU
    • Supports Intel Turbo Boost Technology 2.0
  • Chipset: Intel X99
  • Memory: 8x DDR4-3300(OC)/ 3000(OC)/ 2800(OC)/ 2666(OC)/ 2400(OC)/ 2133 DIMM Slots, Quad-Channel, Non-ECC, Un-buffered, Max Capacity of 64GB
  • Slots: 4 x PCIe 3.0/2.0 x16 Slots (run at x16, x16/x16, x16/x8/x8, x16/x8/x8/x8 w/40-LANE CPU; x16, x16/x8, x8/x8/x8 w/ 28-LANE CPU), 1x PCI-Express 2.0 x 16 Slot (runs at x4), 1 x PCI-Express 2.0 x 1 Slot
  • Multi-Graphics: Supports AMD 4-Way CrossFireX, 3-Way CrossFireX, CrossFireX and NVIDIA 4-Way SLI, 3-Way SLI, SLI Technology
  • Storage:
    • SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10; 2x SATA Express Ports
    • M.2: 1x M.2 Port (type 2260/2280/22110), Support SSDs & PCI-Express Mode Only
  • Audio: ROG SupremeFX 8-Channel High Definition Audio CODEC
  • LAN: Intel I218V Gigabit Ethernet Controller; Wi-Fi 802.11 a/b/g/n/ac Wireless LAN (2.4/5GHz); Bluetooth V4.0
  • Ports: 14x USB 3.0 Ports (10 rear, 4 at mid-board), 6x USB 2.0 Ports (2 rear, 4 at mid-board), 1x PS/2 Keyboard/ Mouse Combo Port, 1x Optical S/PDIF Out, 1x RJ45 LAN Port, 1x ASUS Wi-Fi GO! Modual, Audio I/O Jacks
  • Power Connector: 1x 24pin EATX Power Connector, 1x 8pin ATX 12V Power Connector, 1x 4pin ATX 12V Power Connector
  • Form Factor: EATX, 12.0 x 10.7 inch / 30.5 x 27.2 cm
