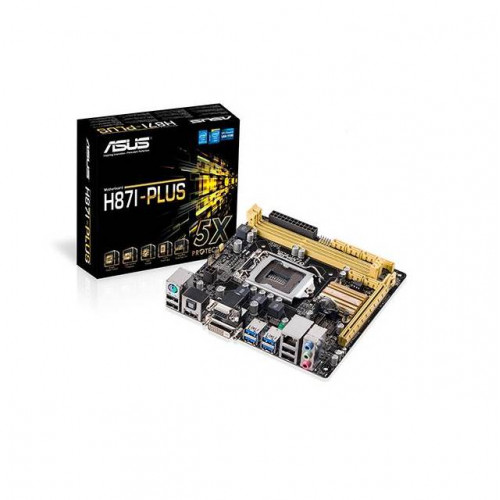

Asus H87I-PLUS LGA1150/ Intel H87/ DDR3/ SATA3&USB3.0/ A&GbE/ Mini-ITX Motherboard

Specifications

• Mfr Part Number: H87I-PLUS
• CPU: LGA1150
  • Supports 4th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
  • Supports Intel 22nm CPU
  • Supports Intel Turbo Boost Technology 2.0
• Chipset: Intel H87
• Memory: 2x DDR3-1600/ 1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 16GB
• Slots: 1x PCI-Express 3.0/2.0 x16 Slot
• SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
• Audio: Realtek ALC887 8-Channel High Definition Audio CODEC
• LAN: Intel I217 Gigabit Ethernet Controller
• Ports: 6x USB 3.0 Ports (4 rear, 2 at mid-board), 8x USB 2.0/1.1 Ports (4 rear, 4 at mid-board), 1x PS/2 Keyboard/Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x Optical S/PDIF Out, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24pin EATX Power Connector, 1x 4pin ATX 12V Power Connector
• Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.0 x 17.0 cm
