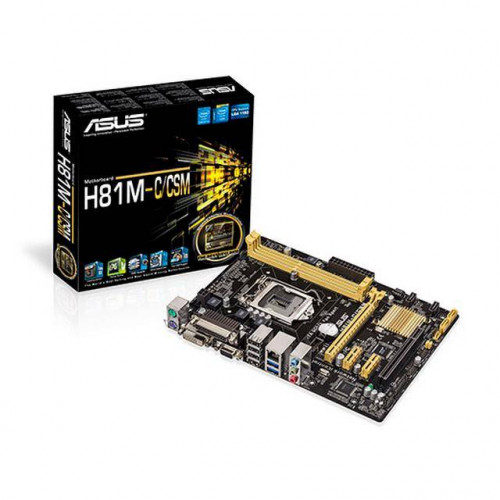

Asus H81M-C/CSM LGA1150/ Intel H81/ DDR3/ SATA3&USB3.0/ A&GbE/ MicroATX Motherboard

Specifications

• Mfr Part Number: H81M-C/CSM
• CPU: LGA1150
  • Supports 4th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
  • Supports Intel 22nm CPU
  • Supports Intel Turbo Boost Technology 2.0
• Chipset: Intel H81
• Memory: 2x DDR3-1600/ 1333/ 1066 DIMM Slots, Dual Channel, Max Capacity of 16GB
• Slots: 1x PCI-Express 2.0 x16 Slot, 2x PCI-Express 2.0 x1 Slots, 1x PCI Slot
• SATA: 2x SATA3 Ports, 2x SATA2 Ports
• Audio: Realtek ALC887-VD 8-Channel High Definition Audio CODEC
• LAN: Realtek RTL8111G Gigabit Ethernet Controller
• Ports: 2x USB 3.0 Ports, 8x USB 2.0 Ports (4 rear, 4 at mid-board), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x Parallel Port, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24pin EATX Power Connector, 1x 4pin ATX 12V Power Connector
• Form Factor: MicroATX, 9.6 x 7.0 inch / 24.4 x 17.8 cm
