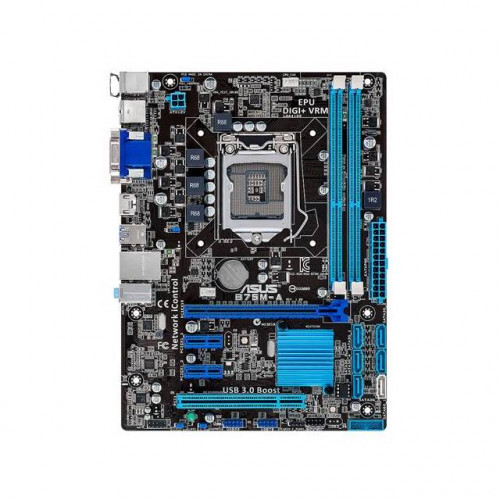

Asus B75M-A LGA1155/ Intel B75/ DDR3/ SATA3&USB3.0/ A&GbE/ MicroATX Motherboard

Specifications

• Mfr Part Number: B75M-A
• CPU: LGA1155
  • Supports 3rd and 2nd Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
• Chipset: Intel B75
• Memory: 2x DDR3-2200(OC)/2000(OC)/1800(OC)/1600/1333/1066 DIMM Slots, Dual Channel, Non-ECC, Un-buffered, Max Capacity of 16GB
• Slots: 1x PCI-Express 3.0/2.0 x16 Slot, 2x PCI-Express 2.0 x1 Slots, 1x PCI Slot
• SATA: 1x SATA3 Port, 5x SATA2 Ports
• Audio: Realtek ALC887-VD 8-Channel High Definition Audio CODEC
• LAN: Realtek 8111F-VB-CG Gigabit Ethernet Controller
• Ports: 4x USB 3.0 Ports (2 rear, 2 at mid-board), 8x USB 2.0 Ports (4 rear, 4 at mid-board), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24pin EATX Power Connector, 1x 4pin ATX 12V Power Connector
• Form Factor: MicroATX, 9.6 x 7.0 inch / 24.4 x 17.8 cm
