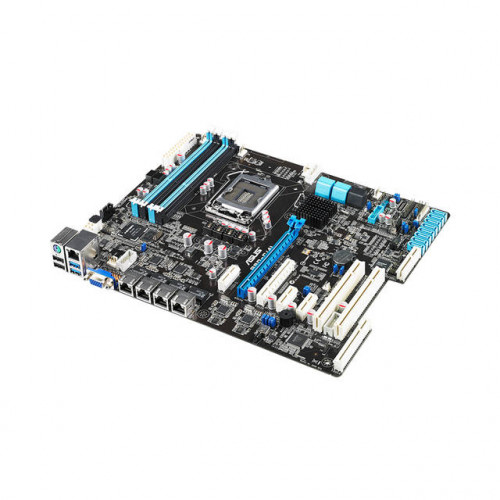

ASUS P9D-C/4L LGA1150/ Intel C224/ DDR3/ SATA3&USB3.0/ V&4GbE/ ATX Server Motherboard

Specifications

• Mfr Part Number: P9D-C/4L
• CPU: LGA1150
  • Supports Intel Xeon E3-1200 v3 Family Processors
• Chipset: Intel C224
• Memory: 4x DDR3-1600/1333 DIMM Slots, Dual Channel, ECC, Unbuffered, Max Capacity of 32GB
• Slots: 1x PCI-Express 3.0 x16 Slot (runs at x8), 1x PCI-Express 3.0 x8 Slot (runs at x4), 2x PCI-Express 2.0 x1 Slots, 2x PCI Slots (32-bit/33MHz), 1x MIO Slot (for Audio Card), 1x PIKE Slot (for Storage Expansion, Gen3 supported)
• SATA: 4x SATA3 Ports, 2x SATA2 Ports, Support RAID 0, 1, 5,10 (Windows)
• Video: Aspeed AST2300 Graphics w/ 32MB VRAM Video Memory
• LAN: 4x Intel I210AT Gigabit Ethernet Controllers; 1x Management LAN
• Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 5x USB 2.0 Ports (2 rear, 2 via header, 1 Type A), 1x PS/2 Keyboard/Mouse Port, 2x VGA Ports (1 rear, 1 via header), 4x RJ45 LAN Ports, 1x Management LAN Port
• Power Connector: 1x 24pin ATX Power Connector, 1x 8pin ATX 12V Power Connector, 1x 4pin SATA DOM Power Connector
• Form Factor: ATX, 12.0 x 9.6 inch
