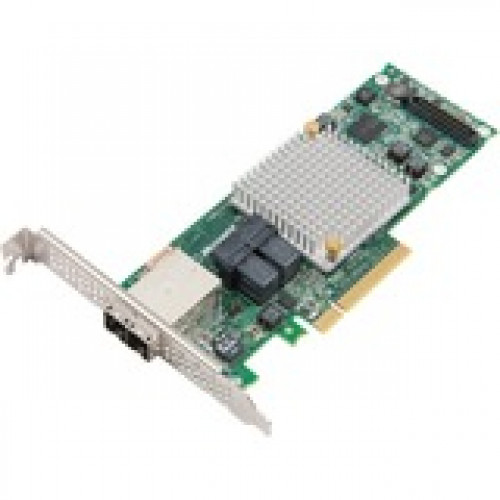

Adaptec Series 8 RAID Adapters - 12Gb/s SAS - PCI Express 3.0 x8 - Plug-in Card - RAID Supported - 0, 1, 1E, 5, 6, 10, 50, 60 RAID Level - 16 Total SAS Port(s) - 2 SAS Port(s) Internal - 2 SAS Port(s) External 2277000-R

Adaptec Series 8 RAID Adapters - 12Gb/s SAS - PCI Express 3.0 x8 - Plug-in Card - RAID Supported - 0, 1, 1E, 5, 6, 10, 50, 60 RAID Level - 16 Total SAS Port(s) - 2 SAS Port(s) Internal - 2 SAS Port(s) External 2277000-R
Brand: Adaptec
Part Number: 2277000-R
MSRP: $812.99
Availability: 10 or more
Condition: New
Price: $677.00
Qty:     - OR -   Add to Wish List
Add to Compare
Series 8 RAID Adapters

Data center, IT, and general consumer server environments have a broad range of requirements - from basic connectivity to extreme data storage capacities. The effectiveness at which their data is accessed and protected is crucial to their ultimate success.. The Adaptec Series 8 12Gb/s RAID Adapter product family directly addresses the connectivity, performance, and data protection needs, unmatched by anything in the industry.

The Adaptec Series 8 RAID adapter family features PMC's PM8063 RAID-on-Chip (ROC), which combines a x8 PCIe Gen3 interface with 12Gb/s SAS ports to enable a new generation of high- performance RAID adapters for the 12Gb/s storage ecosystem. Adaptec Series 8 RAID adapters are available with 8, or 16 native SAS/SATA ports in an LP/MD2 form factor. The mini SAS HD connectors combined with SAS HD cables allow for greater flexibility in configuration options by supporting up to 16 native SAS/SATA ports in a Low-Profile MD2 form factor.

Product Type SAS Controller
Form Factor Plug-in Card
Height 2.5"
Width 6.6"
Limited Warranty 3 Year
Green Compliant Yes
Green Compliance Certificate/Authority RoHS
Package Contents
  • Series 8 RAID Adapters
  • Low profile vented bracket
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels 0, 1, 5, 6, 10, 50, 60, 1E
Total Number of SAS Ports 16
Card Height Low-profile
Platform Supported PC, SPARC
Host Interface PCI Express 3.0 x8
Number of SAS Ports (Internal) 2
SAS Connector Details 2 SFF-8643, 2 SFF-8644
Number of SAS Ports (External) 2
