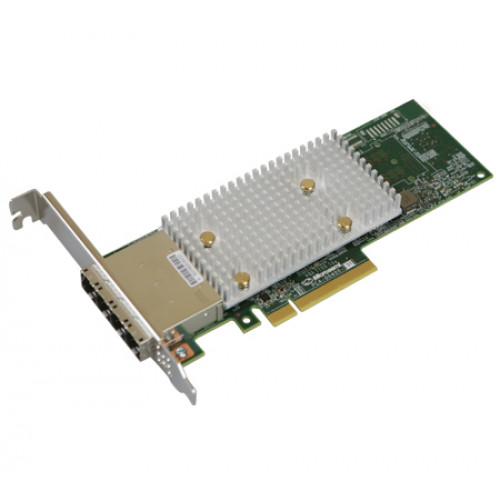

ADAPTEC 2293600-R 12 Gbps Pcie Gen3 Sas/sata Hba Adapter With 16 External Native Ports And Lp/md2 Form Factor Does Not Include Cables AHA-1100-16E

Detail overview

Adaptec Aha-1100-16i 12 Gbps Pcie Gen3 Sas/sata Hba Adapter With 16 Internal Native Ports And Lp/md2 Form Factor Does Not Include Cables.

Technical Specifications

Ports: 16 External

Connectors: 4 X Sff-8644

Bus Interface: 8-lane Pcie Gen3

Processor: 12 Gbps Roc

Package Contents: Hba 1100-16e Adapter, Additional Low Profile Vented Bracket.

Key Software Features:

• Support For Up To 256 Sas/sata Target Devices (238 Ssd/hdds Maximum Support And Remainder Are Reserved For Expanders And Enclosure Management).

• Multi-lun Support

• Sas Expander Support

• Tlr

• Sata Ncq

• Hot Plug Drive Support

• S.m.a.r.t

• Mpio Support

• Multi-initiator (host)/clustering For Sas

• Enclosure Management

• Ses-2, Ses-3

• Sff-8485, Sgpio

•sff-8489, Ibpi

•bmc Support

Management Utilities:

Maxview Storage Manager:

• Web-based Gui Management Utility

• Os Support: Windows, Linux, Solaris, Vmware

• Remote Configuration, Monitoring, And Notification

• Remote Firmware Updates

• Smi-s

• Smtp

Arcconf:

• Command-line Interface

• Smi-s Support For Vmware

Bios Configuration Utility (ctrl+a):

• Legacy Configuration Utility

• Flashable Bios Support

Uefi Bios Configuration Utility:

• Hii-based Configuration Utility

• Flashable Bios Support

Event Monitor:

• Lightweight Event Monitoring And Logging Tool

• Distributes Adapter Events And Notifies User


Operating Systems: Microsoft Windows, Red Hat, Suse, Centos, Ubuntu, And Vmware Esxi, Freebsd, Solaris, Citrix Xen Server.

Dimensions: 2.535 H × 6.6 L (64 Mm × 167 Mm)

Operating Temperature : 0 °c To 55 °c With 200 Lfm Airflow.

Regulatory Certification : Ce, Fcc, Ul, C-tick, Vcci, Kcc, Cns

Environmental Compliance : Rohs
