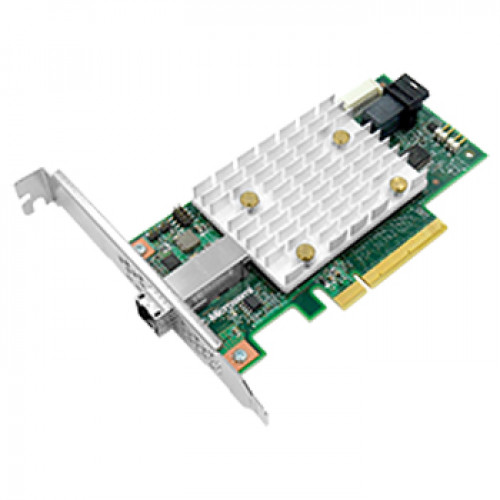

ADAPTEC 12 Gbps Pcie Gen3 Sas/sata Smarthba Adapter With 4 Internal Ports And 4 External Ports And Lp/md2 Form Factor Does Not Include Cables AHA-2100-4I4E

Detail overview

Adaptec Aha-2100-4i4e 12 Gbps Pcie Gen3 Sas/sata Smarthba Adapter With 4 Internal Ports And 4 External Ports And Lp/md2 Form Factor Does Not Include Cables.

Technical Specifications

Ports: 4 Internal, 4 External

Connectors: 1 X Sff-8643, 1 X Sff-8644

Raid Levels: 0, 1, 10

Form Factor: Md2-low Profile

Bus Interface: 8-lane Pcie Gen3

Processor: 12 Gbps Roc

key Software Features:

• Support For Up To 256 Sas/sata Target Devices (238 Ssd/hdds Maximum Support And Remainder Are Reserved For Expanders And Enclosure Management).

• Support For Up To 32 Drives In Raid Arrays

• Hardware Raid Level 0,1,10,5 Support

• Multi-lun Support

• Sas Expander Support

• Tlr

• Sata Ncq

• Hot Plug Drive Support

• S.m.a.r.t.

• Mpio Support

• Multi-initiator (host)/clustering For Sas (hba Devices Only)

• Enclosure Management

• Ses-2, Ses-3

• Sff-8485, Sgpio

• Sff-8489, Ibpi

• Bmc Support

management Utilities:

Maxview Storage Manager:

• Web-based Gui Management Utility

• Os Support: Windows, Linux, Solaris, Vmware

• Remote Configuration, Monitoring, And Notification

• Remote Firmware Updates

• Smi-s

• Smtp

arcconf:

• Command-line Interface

• Smi-s Support For Vmware

Bios Configuration Utility (ctrl+a):

• Legacy Configuration Utility

• Flashable Bios Support

Uefi Bios Configuration Utility:

• Hii-based Configuration Utility

• Flashable Bios Support

Event Monitor:

• Lightweight Event Monitoring And Logging Tool

• Distributes Adapter Events And Notifies User


Operating Systems: Microsoft Windows, Red Hat, Suse, Centos, Ubuntu, Vmware Esxi, Freebsd, Solaris, Citrix Xen Server, And Open-source Linux Drivers.

Dimensions: 2.535 H × 6.6 L (64 Mm × 167 Mm)

Operating Temperature : 0 °c To 55 °c With 200 Lfm Airflow.

Regulatory Certification : Ce, Fcc, Ul, C-tick, Vcci, Kcc, Cns

Environmental Compliance : Rohs

Mtbf : >1.4 Million Hours, Measured At 40 °c
