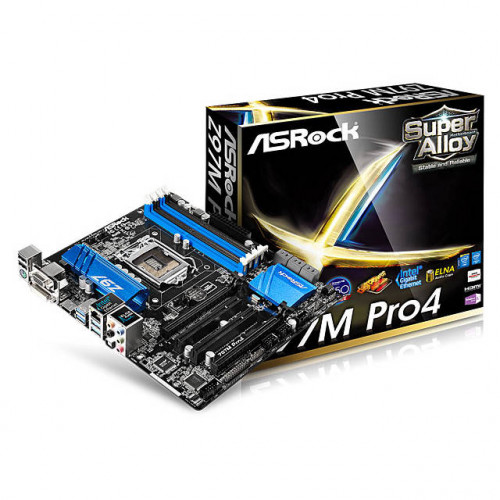

ASRock Z97M PRO4 LGA1150/ Intel Z97/ DDR3/ Quad CrossFireX/ SATA3&USB3.0/ A&GbE/ MicroATX Motherboard

Specifications

• Mfr Part Number: Z97M PRO4
• CPU: LGA1150
  • Supports 5th/ New 4th/ 4th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
  • Digi Power Design
  • 4 Power Phase Design
  • Supports Intel Turbo Boost 2.0 Technology
  • Supports Intel K-Series Unlocked CPUs
  • Supports ASRock BCLK Full-range Overclocking
• Chipset: Intel Z97
• Memory: 4x DDR3-3100+(OC)/ 2933(OC)/ 2800(OC)/ 2400(OC)/ 2133(OC)/ 1866(OC)/ 1600/ 1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
• Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x16 Slot (runs at x4), 2x PCI Slots
• Multi-Graphics: Supports AMD Quad CrossFireX and CrossFireX Technology
• SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
• Audio: Realtek ALC892 7.1-Channel High Definition Audio CODEC; Supports Premium Blu-ray Audio
• LAN: Giga PHY Intel I218V Gigabit Ethernet Controller
• Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x PS/2 Mouse/Keyboard Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x Optical S/PDIF Out, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Power Connector, 1x 8pin 12V Power Connector
• Form Factor: MicroATX
